Ford Mustang Shelby GT500 2013 – Moving Wheels – 1:18 / 1:24 / 1:64

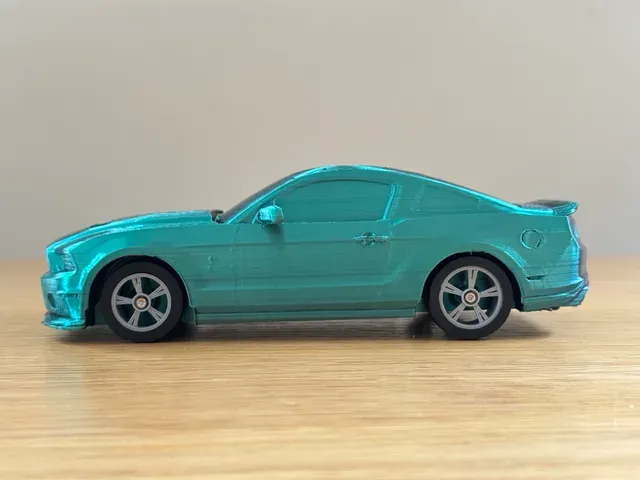

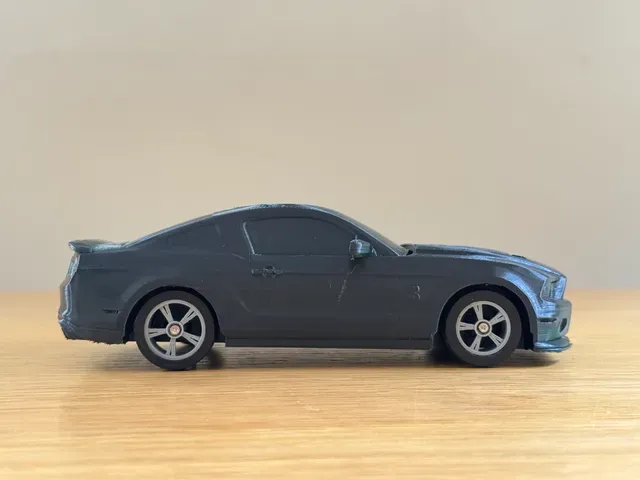

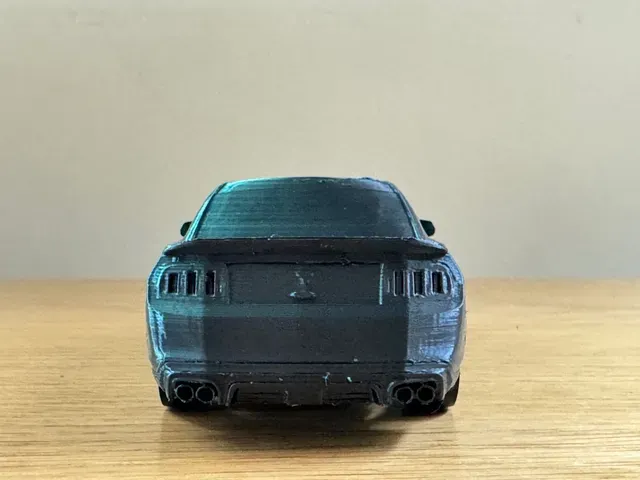

The 2013 Ford Mustang Shelby GT500 is a premium release in my collection of printable cars with functional moving wheels.

The model was designed specifically for reliable FDM printing and straightforward assembly while preserving the aggressive silhouette, front grille, hood vents, rear spoiler and characteristic details of the original GT500.

The closed body and simplified underside form one solid printable part. The model has no interior or opening panels, allowing the exterior surfaces and wheel system to remain strong and clean at all three available scales.

Perfect for:

- Ford Mustang and Shelby enthusiasts

- collectors of printable scale cars

- automotive displays and dioramas

- FDM users looking for a functional rolling model

- multi-colour and multi-material printing

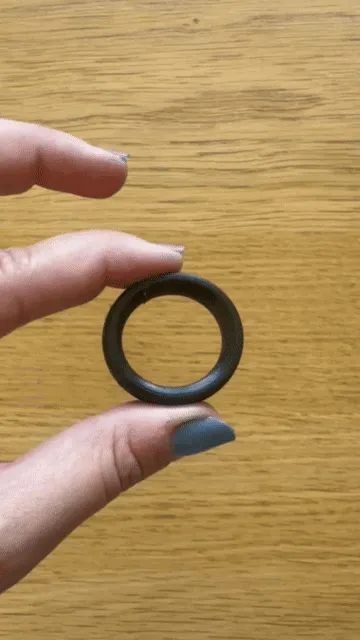

- PLA bodies with separate TPU tyres

Model features:

- functional, freely rotating wheels

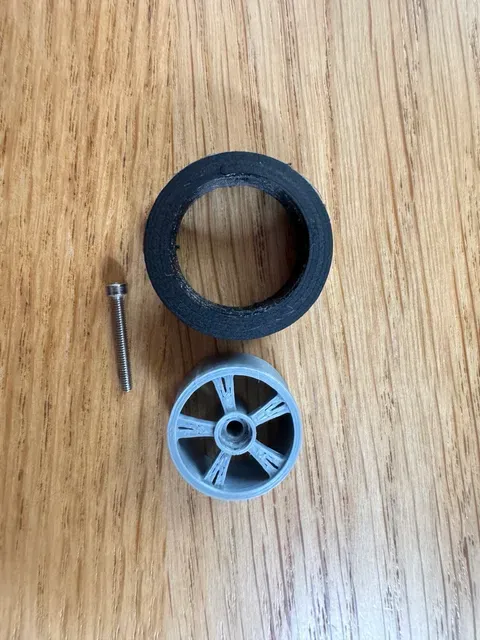

- separate rims, tyres and wheel caps

- one-piece closed body without an interior

- fixed doors, hood and trunk

- no brake discs or additional brake inserts

- front and rear wheels with scale-correct proportions

- reinforced wheel mounts integrated into the BODY

- one continuous transverse axle tube for each wheel pair

- separate screws installed from both sides

- large flat and support-friendly underside

- chamfered front, rear and side transitions

- clean D-shaped wheel arches

- no printed axle required

- prepared in three functional scales

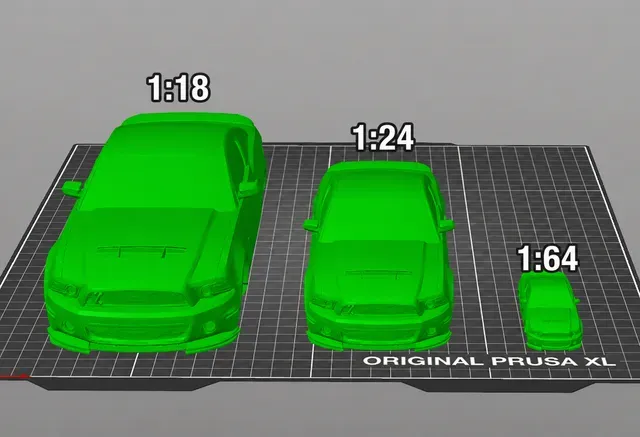

Available scales

1:18

- approximate BODY length: 265.61 mm

- wheel screws: M3×0.5 × 25 mm

- BODY pilot hole: Ø2.50 mm

- recommended thread depth: approximately 8 mm from each side

- requires approximately 235 × 235 mm of build area when rotated about 45°

- recommended usable print bed: at least 245 × 245 mm

1:24

- approximate BODY length: 199.21 mm

- wheel screws: M2×0.4 × 16 mm

- BODY pilot hole: Ø1.60 mm

- recommended thread depth: approximately 4.5–5 mm from each side

- suitable for a standard 220 × 220 mm print bed

1:64
