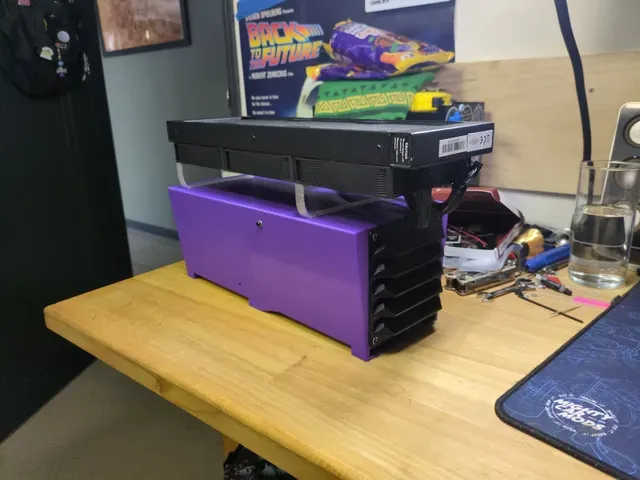

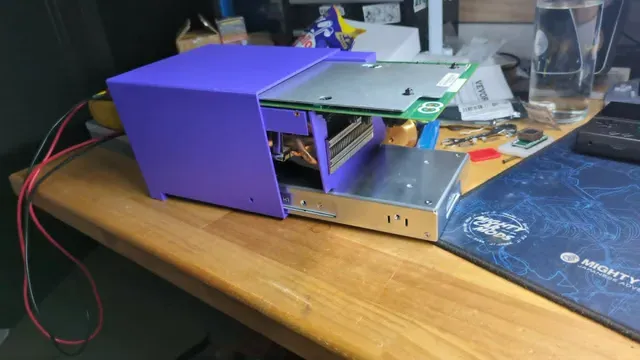

BC-250 Meanwell LRS-350-12 Chassis

Chassis designed for the AsRock BC250 with a Meanwell LRS-350-12 PSU and 120mm front fan.

Meanwell psu cooling is separated from the BC250 with intake and exhaust vents on the bottom, separated by the center leg.

Designed to use M3 hardware with heatset thread inserts.

Supported coolers: AM4 Prism cooler with the fan removed.

AIO Liquid coolers. Use AIO files for a cutout to suit the hoses of an AIO.

Fan grill, whatever 120mm grill you want.

Currently still a WIP. My weak fan plus the prism are only capable of maybe 140W of cooling. I'm working on other solutions using 250W+ server heatsinks and a better 120mm fan.

Printing, I used normal supports for anything over 80 degree overhang, front and rear face down. Sorry the orientation isnt out of the box.
