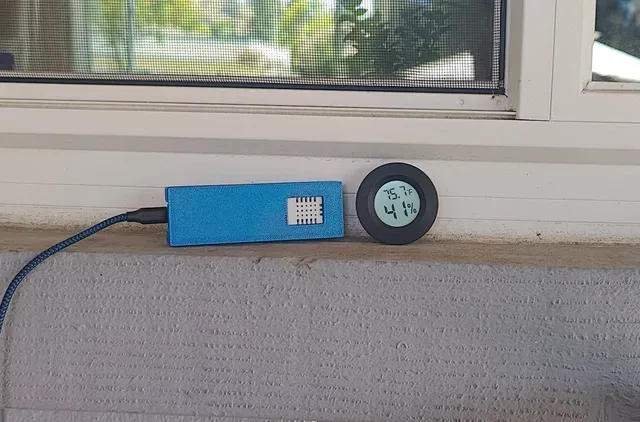

Wemos D1 Mini and DHT22 (no PCB) Enclosure

Remix of Design and make a snap fit enclosure for microcontroller & temperature sensor. Using Wemos D1 mini and DHT22 (no pcb) sensor.

I'm using Home Assistant with Esphome. Here is my yaml.

esphome: name: outside-temp friendly_name: Outside Temp

esp8266: board: d1_mini

wifi: ssid: !secret wifi_ssid password: !secret wifi_password

ap: ssid: "Outside Temp Fallback Hotspot" password: !secret wifi_password

captive_portal:

logger:

api:

ota: - platform: esphome password: !secret ota_password

sensor: - platform: dht pin: number: D4 mode: INPUT_PULLUP model: AM2302 temperature: name: "Outside Temperature" id: outside_temp filters: - offset: -2.0 - round: 1 humidity: name: "Outside Humidity" update_interval: 60s
