Hero Me Gen 5 MDD v1.3 Gantry Clip 5 Remix for Ender 3 v2

Update on 4 March 2021 - I noticed some minor errors in the cutout for the nut, which have been corrected in the v1.01 files.

This is a very simple remix of the Hero Me Gen 5 Gantry Clip 5.

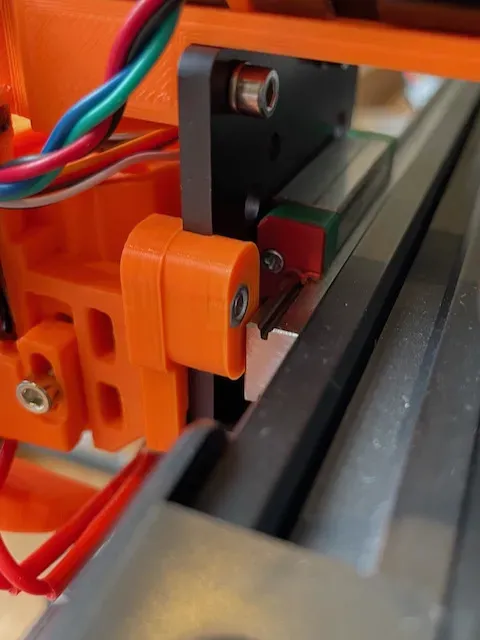

The original 'Gantry Clip 5' for use with the PrinterMods MDD v1.3 did not work on my Ender 3 v2 with linear rails as there simply was not enough room between the back of the clip and the linear rail.

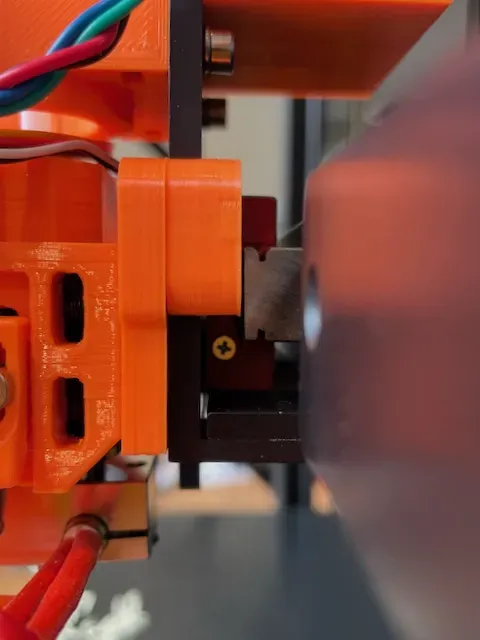

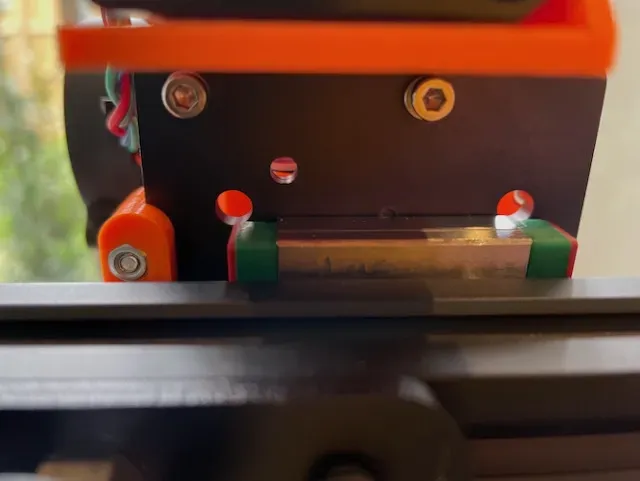

This remix includes a cutout to capture an M3 nut, providing just enough clearance between the back of the clip and the linear rail. It also has the added benefit of not needing to have pliers or a spanner to hold the nut when tightening the M3 bolt from the front.

I have included Fusion360 and .step files in case people need to modify the size of the cutout as I found there were minor variations in the size of the M3 nuts I have on hand.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: Yes

Resolution:

0.2mm

Infill: Doesn't matter

Filament: eSun PETG Orange

Notes:

You'll need supports for the cutout for the nut.
