Monoprice Mini Select v2 Raspberry Pi Camera v2.1 Simple Side Mount

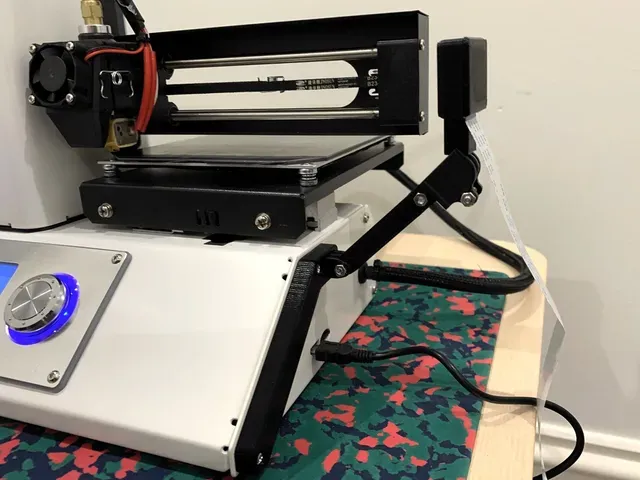

This is a simple side mount for a Raspberry Pi v2.1 camera module with a Monoprice Mini Select v2. I could not find an existing design that I liked, so I designed a simple side mount and remixed parts from several designs to:

- avoid attaching the camera to the bed or other moving parts so as not to introduce additional vibrations

- provide an 'eye level' view of the bed, given the Mini's print area is so small and the gantry and hot end assembly get in the way from higher angles

- have a simple design that was easy to print and fitted in with the Mini's design aesthetic

- could be mounted without drilling or glueing

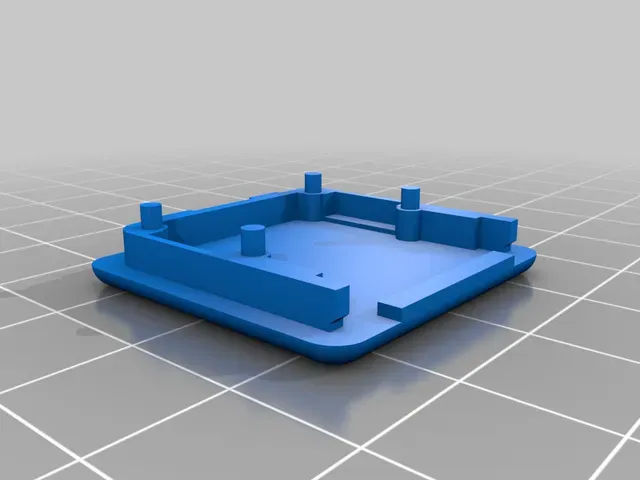

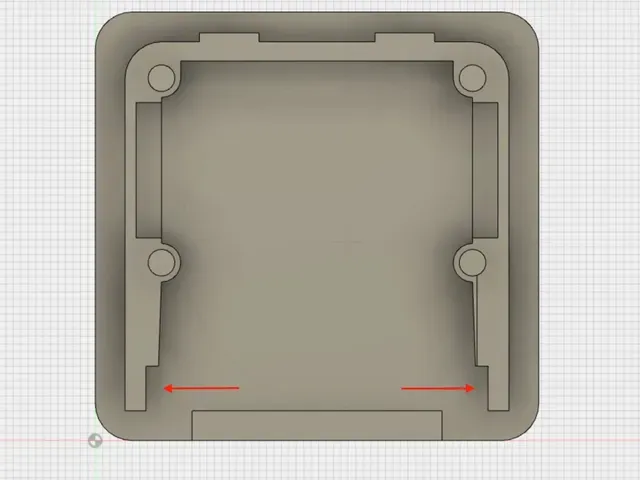

I also could not find an existing case front / back design that worked with the Raspberry Pi v2.1 camera module. The ribbon cable connector appears to have changed and would foul on existing designs. I also took inspiration from willywidget's Raspberry Pi Camera Case with its bottom-back exit for the ribbon cable.

In addition, I really liked monkeylabs' Ball Joint with Tension screw so there was more tension on the ball joint, but the design was not manifold, so I repaired it.

In addition to the files in this project, you will need to print:

- the ball joint (BallJoint.stl) from 3dkarma's design

- two links from 3dkarma's design - I found 80mm length worked well

You will also need a couple of M3 screws:

- 2 x M3 screws of around 10-12mm to hold the mount to the side of the Mini

- 2 x M3 15-16mm screws and nuts for the links

- 1 x M3 25mm screw and nut for the ball joint holder

I would also recommend printing the Raspberry Pi Camera v.2 Focus Tool .

I have included Fusion 360 file for all the items I designed, remixed or repaired for those that wish to tinker.

The side mount itself could probably be thinned a bit, but I didn't mind the chunky look.

Enjoy!
