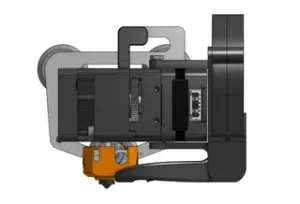

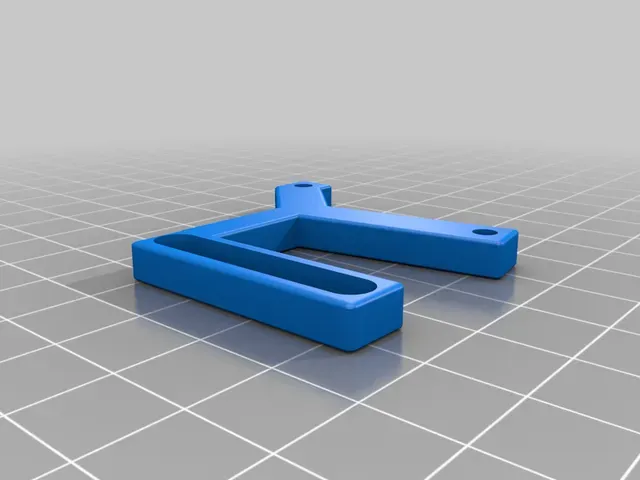

BIQU H2 Adjustable 5015 Fan Mount

This is a remix of the height adjustable 5015 fan mount for the BIQU H2 ( https://www.thingiverse.com/thing:4842644 ) which in turn is a remix of H2 Front Mount 5015 Fan Duct ( https://www.thingiverse.com/thing:4682915 ). My goal with the remix was to further reduce the weight and open up the hot end cooling ventilation for even more air flow.

I took inspiration from the narrow fan mounts on my Prusa MK3. Once installed with a fan and duct you will find it to be fairly rigid and sturdy.

Print Settings

Layer: 0.2

In Fill: 20%

Supports: No

Additional hardware required:

2 x M3x6 Attaching mount to the BIQU H2

2 x M3 hex nut Securing fan and duct

1 x M3x8 Securing the fan duct

1 x M3x20 Securing the fan

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

No

Supports: No

Resolution:

0.2 mm

Infill: 20

Filament: Generic PETG Black

Category: 3D Printer Parts
