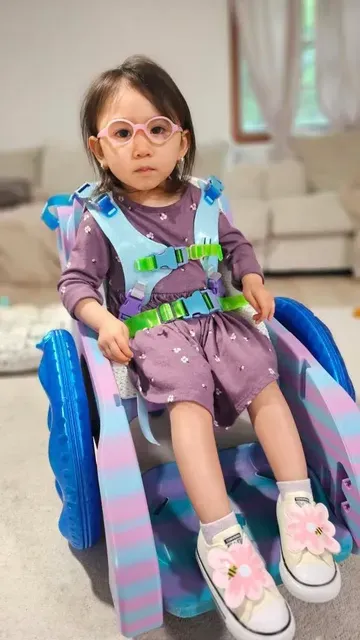

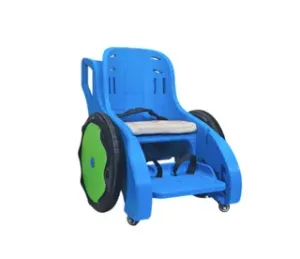

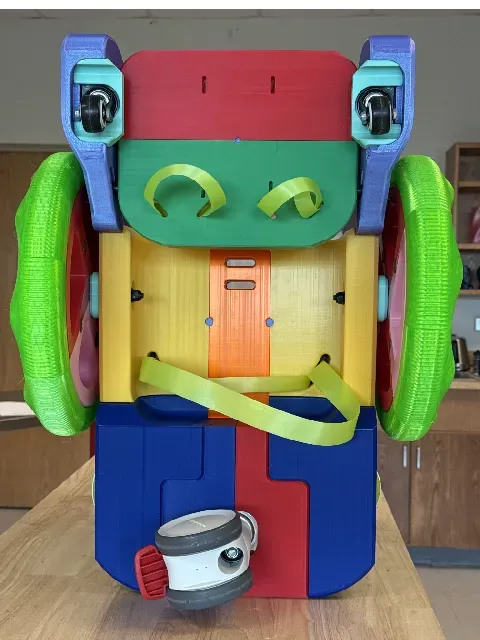

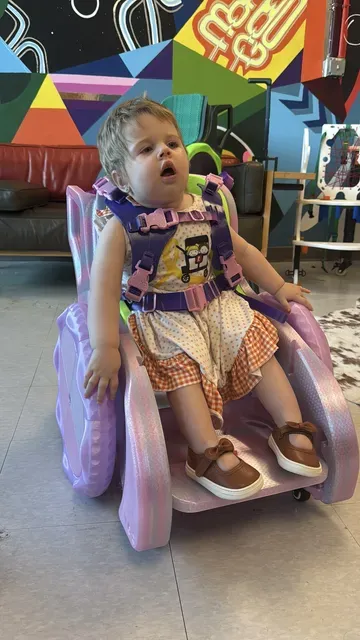

3D Toddler Mobility Trainer

Welcome to the 3D Printed Toddler Mobility Trainer!

This device is designed for children ages 1-8 to build mobility, independence, and social skills.

Requires a Core One L+ or larger build plate.

YOU MUST READ AND AGREE TO ALL OF THE TERMS AND CONDITIONS AT https://3d-mobility.org/ BEFORE USING THIS DEVICE!

JOIN OUR MAKER / FAMILY MATCHING PROGRAM AT https://3d-mobility.org/

UPDATE 2026 07 31

Added support to upper push handle

UPDATE 2026 06 21

Revised ‘REV B' Left and Right Wing.

Some users were reporting issues getting the front caster to fully rotate, with it hitting a small section on the 'Wing' in the mounting area. Wings REV B fixes this problem. No need to reprint, simply ensure your front caster wheels are able to fully rotate. Use a utility knife to shave down any areas to achieve full rotation as needed.

UPDATE 2026 06 15

Revised ‘REV C’ Front caster mount - easier to install

Changed standard TPU 95A tire setting to: 3 walls and 20% infill. Harder tires gave users a smoother ride

UPDATE 2026 04 25

Revised orientation for the front caster mount.

Replaced 4-part wheel with 2-part wheel. 4-part rim still available at end of build plates.

Added 1-part footrest Added 3D-printed washers to build plates instead of using metal washers.

UPDATE 2026 04 22

Minor Adjustments to the lower push handle to make sure the headrest screw does not hit the handle.

Current file is: 3DTMT XX PUSH HANDLE BOTTOM REV B V3.

---------------------------------------------

UPDATE 2026 04 12

REV B RELEASED! This revision encompasses minor but important changes:

New Front Caster Mount

New Push Handle Bottom

New Push Handle Braces

New Headrest

New Headrest Screw

---------------------------------------------

We are also releasing KIT hardware and filament for all VETTED makers on 3D-Mobility.org . USA ONLY

You can now purchase the $25 KIT (hardware only) or $100 KIT (hardware + filament).

NOTE YOU CANNOT MIX KIT CASTERS WITH SELF-SOURCED (McMaster/Amazon) CASTERS!!!

The updated REV B profiles also reflect these changes related to the KIT:

Additional Plate for the Rear Caster Mount for KIT hardware.

Additional Plate for TPU 98A tires (TPU 98A will be included in the KIT, print TPU 98A tires at 6% infill)

Note: All other TPU parts remain unchanged between 98A and 95A

Build sponsoring will be turned on in the coming couple weeks as we get this process underway.

Rear caster available on amazon - https://amzn.to/4xgCRgy - use with this print profile - https://makerworld.com/en/models/2923623-caster-mount-for-amazon-casters#profileId-3271903

---------------------------------------------

Update 2025 12 04 -
