Beseler 45 Negative Carrier – 6 x 4.5 (645)

⚠ Please Read the Instructions First

These carriers work like the original Beseler carriers, but they are plastic, not metal, and plastic has to be handled differently. The included PDF walks through printing and assembly step by step. Following it is the surest way to a carrier that works the way it should.

Printable replacement negative carrier for Beseler 45-series enlargers, for 6x4.5 (645) negatives.

Hinged, One-Piece Carrier

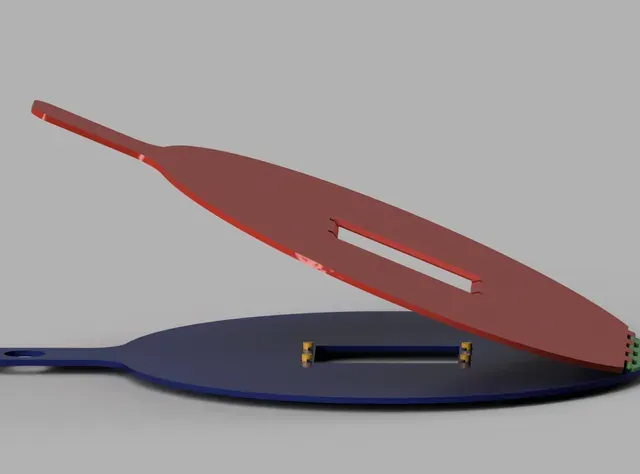

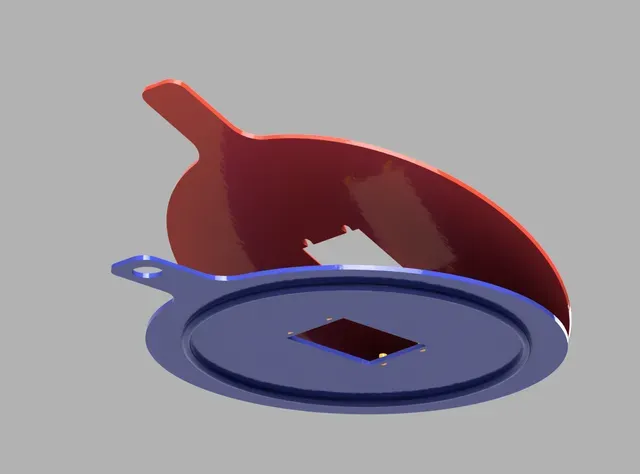

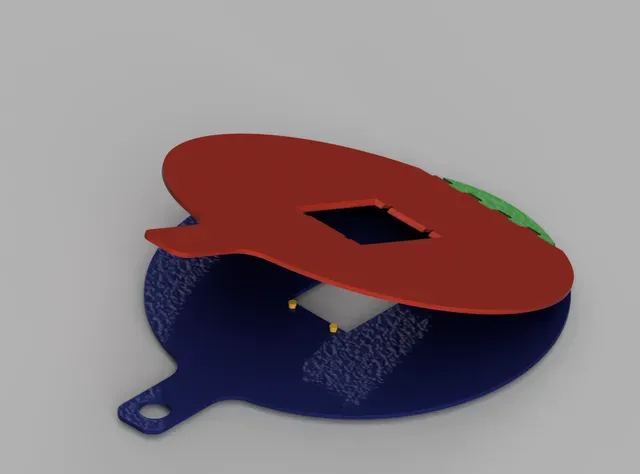

Works like the original Beseler carriers. The top plate is joined to the bottom by a print-in-place hinge, so it opens, loads and closes exactly like the OEM part. This is not a two-piece sandwich you have to assemble before it goes into the enlarger. Original Beseler 45 carriers locate with pins; the later 23C carriers use a locating ring. This carrier uses a ring sized for the 45 so both series share one parametric design. The difference is in form only: it seats and centers the carrier in the stage exactly as the pins do.

Only additional items needed: CA (super) glue and a hammer.

Not for Commercial Use

This model is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0): http://creativecommons.org/licenses/by-nc-sa/4.0/ Print it for yourself, for friends, or for your camera club. Selling prints or files, whether on eBay, Etsy, print-on-demand services or anywhere else, requires a commercial license. Contact me to arrange one.

Specifications

- Enlarger: Fits all Beseler 45-series enlargers (45M, 45MX, 45MCRX, 45MX-II, 45MXT, 45V-XL and variants).

- Film: 120/220 roll film

- Used with: Mamiya 645 series (M645, M645 1000S, M645J, M645 Super, 645 Pro, 645 Pro TL, 645E, 645AF, 645AFD), Bronica ETR, ETRC, ETRS and ETRSi, Pentax 645, 645N and 645NII, Contax 645, Hasselblad H1 and H2, Fuji GA645 and GS645, Holga 120N and 120GCFN with the 6x4.5 mask, and 6x4.5 folders

Print Settings

- 0.08 mm layer height, 0.4 mm nozzle

- PLA, opaque matte black recommended (pins may be a light color)

- Print on the smoothest plate you have; avoid textured plates

- Do NOT use any XY hole compensation; the pin holes are an interference fit

- Top and bottom usually need separate plates

Files

- Negative_Carrier_Beseler_45_6_x_4_5_Bambu.3mf (Bambu Studio)

- Negative_Carrier_Beseler_45_6_x_4_5_Generic.3mf (other slicers, tested in PrusaSlicer)

- Negative_Carrier_Beseler_45_6_x_4_5_top.stl (top plate with print-in-place hinge)

- Negative_Carrier_Beseler_45_6_x_4_5_bottom.stl (bottom plate)

- NegativeCarrier_Aligment_Pins_Undercut_All.stl (4 pins per carrier)

- Beseler_23C_45_Negative_Carrier_Printing_And_Assembly_Instructions.pdf

Assembly

Full steps are in the included PDF: drive the 4 undercut pins, break the print-in-place hinge free, then glue the hinge to the bottom plate with CA glue.
