HiFi Berry Amp 2 Housing

Full Project Details and Docs: https://github.com/AnotherMike-exe/HiFiBerry-Housings

Amp2

Exploded view:

Files:

File

Purpose

Amp2/HiFiBerry-Amp2-Housing-A.3mf

Orca/Prusa Slicer print file for Part A.

Amp2/HiFiBerry-Amp2-Housing-B.3mf

Orca/Prusa Slicer print file for Part B.

Amp2/HiFiBerry-Amp2-Housing.stp

STEP file, all parts, for other CAD tools.

Amp2/HiFiBerry-Amp2-Housing.stl

Combined STL mesh, all parts, for slicers without STEP or 3MF support.

Amp2/HiFiBerry-Amp2-Housing.3dm

Native Rhino source file.

Print settings:

PETG, multi-material, standard-profile layer height, 15% infill.

Hardware used:

Item

Value

Heat-set inserts

(4) M3, Voron-spec

Standoffs

(4) M3 x 12mm motherboard standoffs

Screws

(4) M3 x 6mm

Build steps:

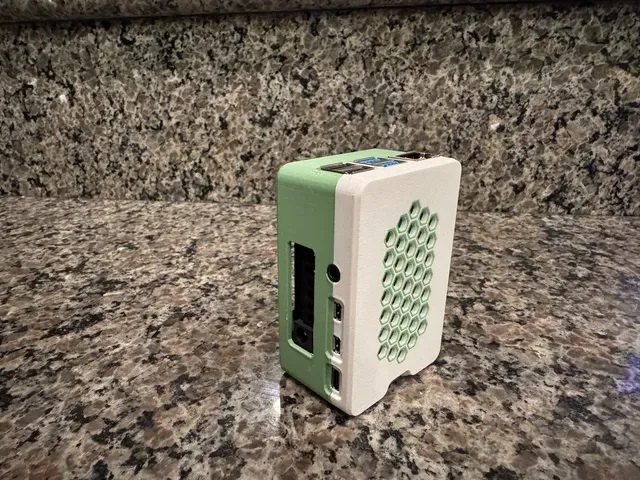

- Install the (4) heat-set inserts into the top piece (the green part shown in the pictures).

- Mount the Amp2 board to the top using the (4) M3 x 12mm standoffs into the heat-set inserts.

- Place the Raspberry Pi onto the standoffs, and attach with the (4) M3 screws.

- Snap the bottom housing piece onto the assembly.

Attributions

- Base design: Malolo's screw-less / snap fit Raspberry Pi 4 Model B Case & Stands by Malolo , licensed under CC BY-NC 4.0 .

- This remix is released under the same license: CC BY-NC 4.0 . Use, modify, and remix freely for non-commercial purposes, with credit to Malolo for the base design and to this repository for the HiFiBerry-specific changes.

- HiFiBerry is not affiliated with this project.
