(v2.0) Trigorilla Motherboard Replacement Bracket for SKR 1.3 / SKR 1.4 / MKS SGEN L / MKS GEN L V2.1 Boards w/ Cooling Fan Duct

Trigorilla Motherboard Replacement Bracket for SKR 1.3 / SKR 1.4 / MKS SGEN L / MKS GEN L V2.1 Boards w/ Cooling Fan Duct

Part Counts:

1 Main Bracket

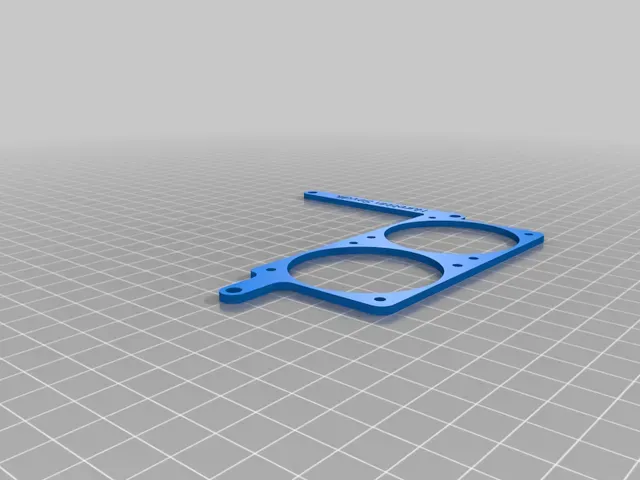

1 Cooling Fan Bracket

4 Spacer Pipes

Needed Supplies:

2pcs 5010 Fan

4pcs M3x30 Screw (For mounting the main bracket to the chassis)

8pcs M3x15 Screw (For stepper driver cooling fans)

4pcs M3x5 Screw (You can use screws from the old motherboard)

8pcs M3 Nuts

Print Settings

Printer Brand:

Anycubic

Printer: All-metal Mega

Rafts:

Doesn't Matter

Supports: No

Resolution:

0.3 mm (300 microns)

Infill: %20-%25

Filament: FK Filaments Strong PLA White How I Designed This ===================

I designed these models with SolidWorks 2019-2020 Student Edition.

Category: 3D Printer Parts
