Creality Sonic Pad Top Rail Mount with Cable Management

Again, this was born out of necessity, sonic pad attached to my Ender 3 S1 Plus sat on the floor, the Sonic Pad that is. I was fed up with brushing it with my feet, and it was going back to restart mode, screwing up a print.

There are others out there that solve this problem, and they were a nice design, but they just didn’t work for me. So, I took inspiration from all the parts of them I liked and mashed them together and came up with this.

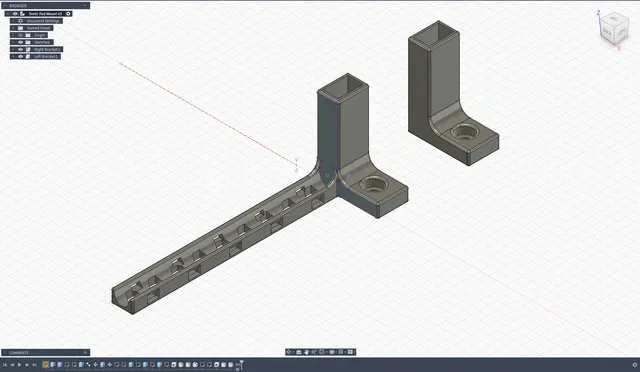

Model Description

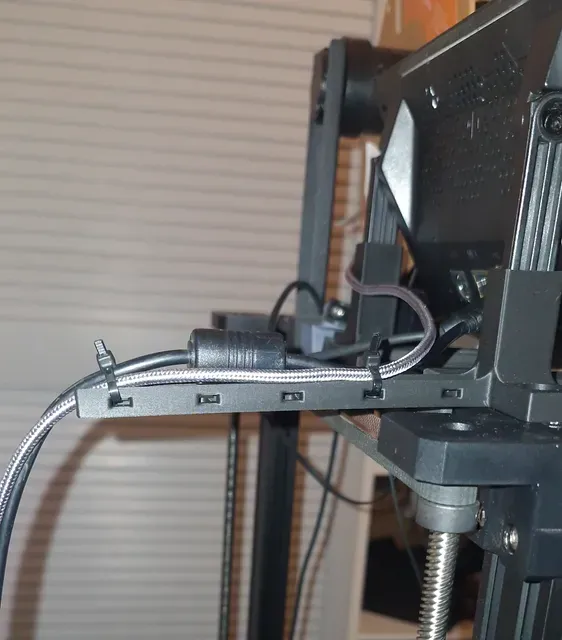

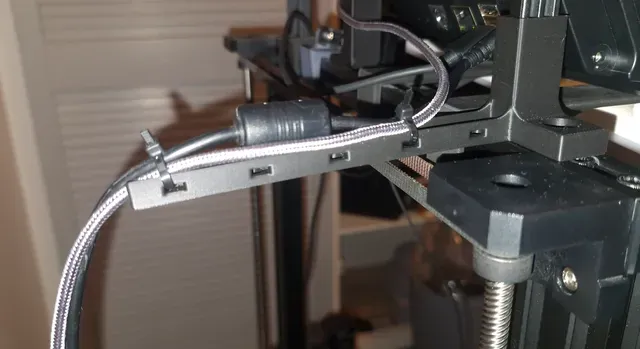

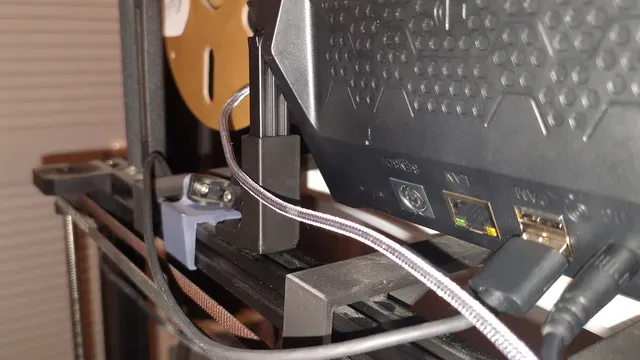

The Sonic Pads legs slot into the mount, so no unscrewing, etc. Just use two M4 8mm screws/bolts and two T-nuts. One for each leg mount. I found that by positioning the mount with the Cable Management rail first, I was able to get it in the right position for me. Then I set about positioning the other mount.

Available Files

To cater to various needs and preferences, I have provided the following file types:

- Fusion 360 (.F3D)

- 3MF

- STEP

- .STL

Feel free to customise and modify the design to suit your specific requirements.

Community Collaboration

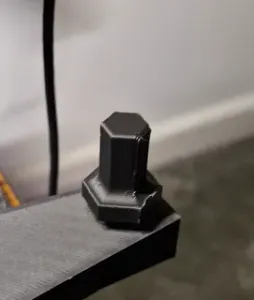

I encourage you to share your customised versions on the community sharing page. By collaborating, we can learn from each other and enhance the design further. If you encounter any issues or if the design does not meet your expectations, please let me know on the sharing page. I will do my best to address any concerns.

Please like, save, and share the design if you find it useful. Your feedback, both positive and constructive, is invaluable in helping me improve these creations. I’d also love to see photos of your prints! I’m curious to see how they turn out for you.

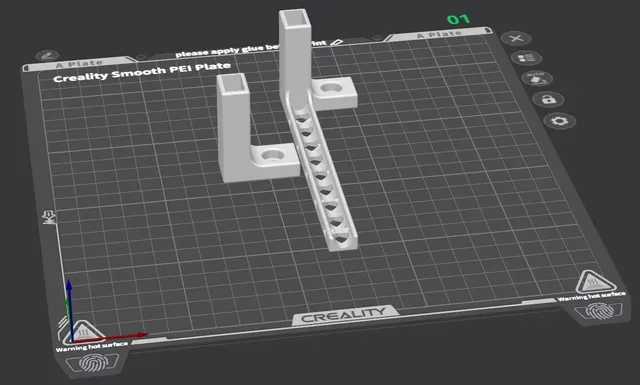

Print Settings:

· Standard Quality

· Nozzle: 0.4mm

· Walls: 2

· Top/Bottom Layers: 4

· Infill: 15% Cubic

· Supports: No

· Material: Eryone PLA

· Colour: Matt Black

· Weight: 21.17 g

· Print Time: 1 hour 37 minutes

Instructions for Use

- Download Files : Access the provided files in your preferred format.

- Print : Use the recommended print settings for the best results.

- Share : Upload your customized versions and photos of your prints on the community sharing page.

Conclusion

Thank you for your interest and feedback! By sharing your experiences and improvements, we can collectively refine and perfect this design. Let’s continue to innovate and create together.

Links for 3D Models :

- 2 x M4 8mm Hex Socket Head Screws

- 2 x M4 T Nuts

- Eryone PLA
