Snow Shovel for Kids for 20 or 30 mm wood shaft

...since its snowing and due to corona the shops are in lockdown....

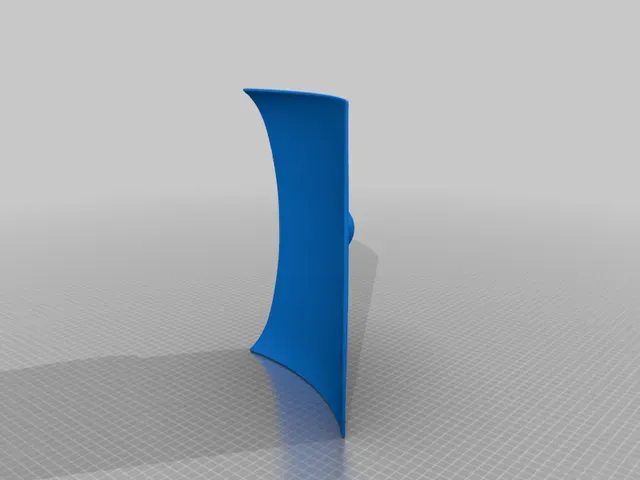

...here is a kids snow shovel fitting on a 20 mm wood shaft.

...comes at around 500g filament when printing with the settings below and using some support.

Print Settings

Printer:

SecKit SK-Go²

Rafts: Yes

Supports:

Yes

Resolution: 0.25

Infill:

50%

Filament:

Sunlu PLA Grey

Notes:

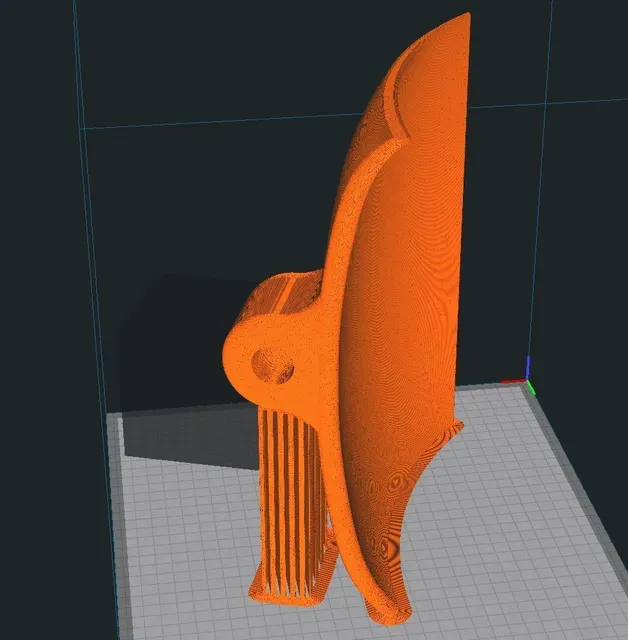

I used the support blocker to reduce slightly the supported area (picture).

Also I recommend the orientation for max stability. How I Designed This

FreeCAD

model included.

If you want to change the shaft diameter, you have to change: the x and y scale of the clone: ISO4017-M20x60_001_adjust_Scale for Diameter

the radius1 and radius2 of the cone: Cone_adjust_Scale for Diameter

of the Shaft_Bracket part

The bracket should allow diameters up to approx. 35mm

STEP files are included if you want to use another CAD
