4U Server Case 120mm Fan Hole Cable Guard

Overview

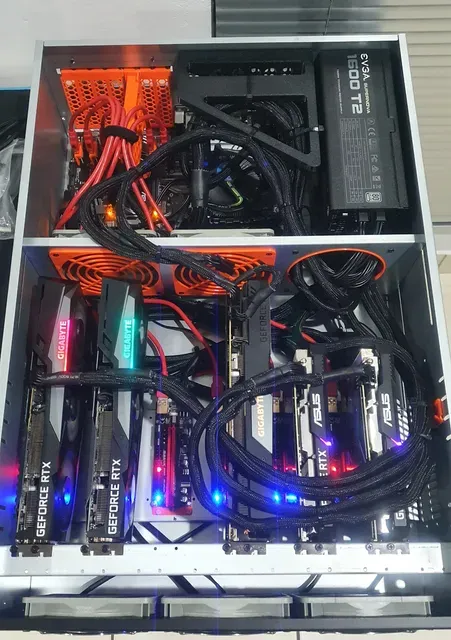

This collection is my attempt at creating a crypto currency mining server, using a generic 4U Server Case converted to contain Graphics Cards (GPU). You could also use this as a neural network farm, render farm, Folding@Home server, etc. During this journey, I needed to design several brackets and adapters to make parts and cables fit smoothly, and wanted to share these with the community. This collection also references several other printed parts that were extremely useful, but not my design. Recommend at least using PETG material due to heat inside the server case. Happy printing :)

This Model - 4U Server Case Fan Hole Cable Guard

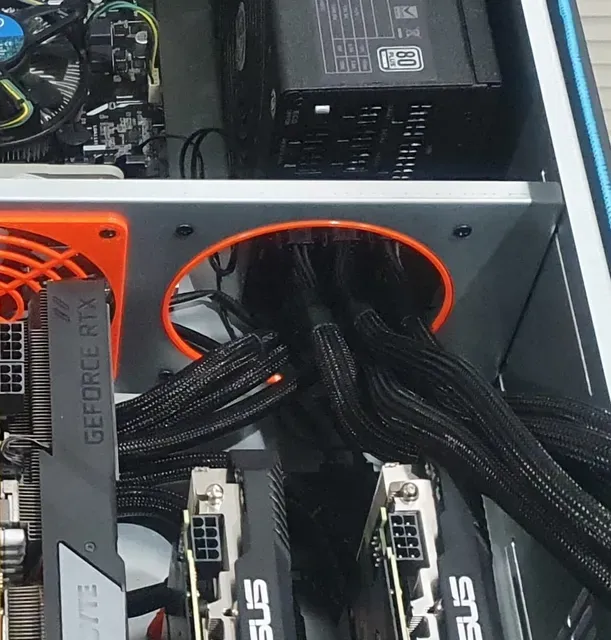

The GYAM server case had a middle rail to mount additional 120mm fans. However, I needed to use one of these fan holes for my power supply cables and was concerned about the cut sheet metal damaging the cables and my fingers. This guard allows the cables to rest on plastic instead of metal, and is mounted using the same fan mounting holes and self-tapping fan mount screws into the plastic.

My Other Models in this Collection

4U Server Case GPU PCIe Riser Mount Conversion V006 to V009S - https://www.printables.com/model/189407-4u-server-case-gpu-pcie-riser-mount-conversion-v00

4U Server Case Floor Stand Feet (Vertical/ Horizontal) - https://www.printables.com/model/189445-4u-server-case-floor-stand-feet-vertical-horizonta

4U Server Case Motherboard Cable Support Bracket - https://www.printables.com/model/189456-4u-server-case-motherboard-cable-support-bracket

External 3D Model References Used in the Server Build

PCIe / PCI-e Riser Adapter Lock Clip (leeph) - https://www.thingiverse.com/thing:2833817

My Customized Fan grill 120 (jenaplissken) - https://www.thingiverse.com/thing:3103228

PCI SSD Bracket (BearTechandTools) - https://www.thingiverse.com/thing:946543

PCI Slot Cover (Printercat64) - https://www.printables.com/model/160015-pci-slot-cover

Zip Tie Anchor (LoboCNC) - https://www.printables.com/model/132296-zip-tie-anchor

Non-Printed Main Components List

Case: GYAM 4U Height Rackmount Server Chassis 6/8 Cards ATX Motherboard

Motherboard: ASUS PRIME H270-PLUS

CPU: Intel Celeron G3930

GPU Risers: V009S

PSU: EVGA 1600W SuperNOVA T2

Fans: Noctua NF-P12 Redux 1700RPM

Fan Hub: DEEPCOOL FH-10 Integrated Fan Hub

WiFi: TP-Link TL-WN725N Wireless-N150
