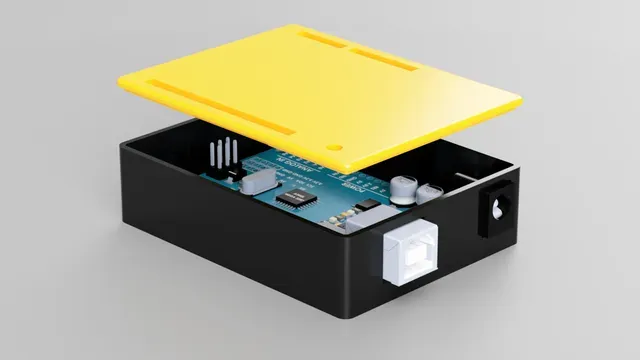

Arduino Uno Snapcase with Cutouts

* SnapCase for Arduino UNO *

Dimensions

Designed to accomodate an Arduino UNO board.

Design Process

The goal was to create a neat and quality case for the UNO board that protects it while still allowing access to all major I/O points.

Help me out

Using the affiliate Link gives me a small kickback and doesn't cost you anything, so if you need filament anyways, using the link below would be very kind!

Black PLA: https://www.amazon.de/gp/product/B071DM81ZK/ref=as_li_ss_tl?ie=UTF8&linkCode=sl1&tag=sharky05-21&linkId=fde33aa0e575d2b8afeb317b3c6e7d4e&language=de_DE

Yellow PLA: https://www.amazon.de/gp/product/B071DM81ZK/ref=as_li_ss_tl?ie=UTF8&linkCode=sl1&tag=sharky05-21&linkId=fde33aa0e575d2b8afeb317b3c6e7d4e&language=de_DE

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 15%

Filament: Goedis PLA Black/Yellow Post-Printing =============

Drilling and tapping

After Printing, drill and tap the holes for your desired mounting screws.

Category: Electronics
