Описание

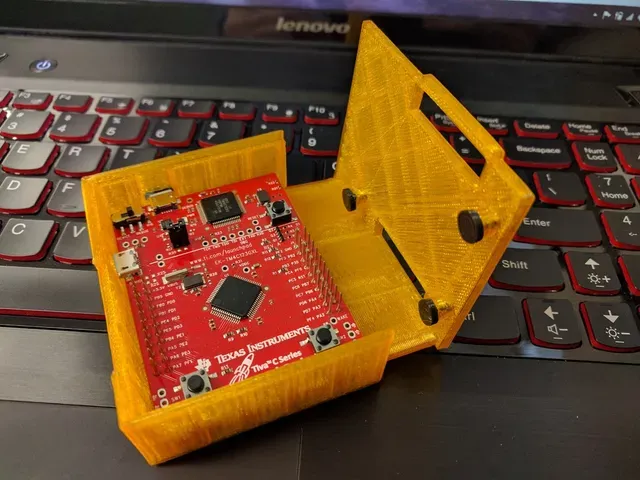

This case is for a Texas Instruments Tiva C series Launchpad, and was modeled off of the EK-TM4C123GXL.

Print Settings

Printer:

Flux Delta

Rafts: No

Supports:

Resolution: .25

Infill:

Notes:

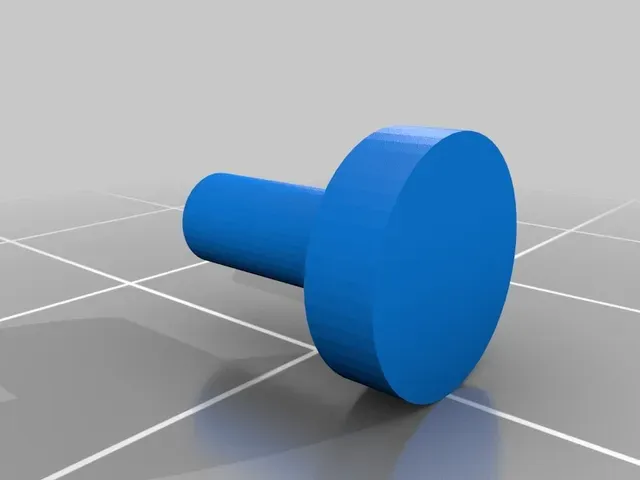

I used such a low resolution with a low infill due to printing it in a translucent PLA, in order to see the board inside. The pin (button pass-through) needs to be printed 3 times along with 3 pin caps.

Post-Printing ============= Clam shell

Due to the printable hinge, the base walls need to be gently spread in order to get the top half to mate with the bottom half.

Pin Assembly

For the assembly of the pins, I've been placing the pin up through the holes in the upper half of the clamshell and super gluing the pin caps on top.
