Round interlocking self-watering planter

This is a two piece self-watering planter. 100mm diameter.

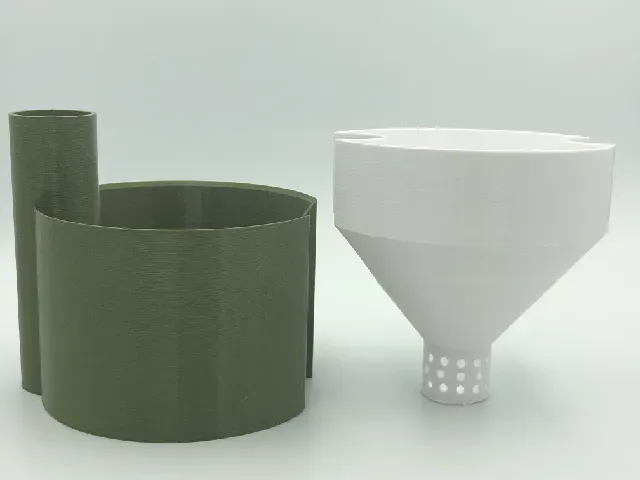

Prints in two pieces which fit together.

Inner piece holds the plant and soil.

Outer piece holds the water.

Test for water-proofness before putting on something which could be damaged.

Designed in Fusion 360 - inspired by Tileable Self Watering Planter by Yamill on Thingiverse https://www.thingiverse.com/thing:3175416

Print instructions

No supports required

Print inner piece with small section on bed - use a brim for stability if required (prints without brim on a Prusa Mk3)

0.2mm Layer height 200um (0.3 mm if you use a 0.6 nozzle)

PLA

5% Infill

5 perimeters on the outer piece for waterproofing

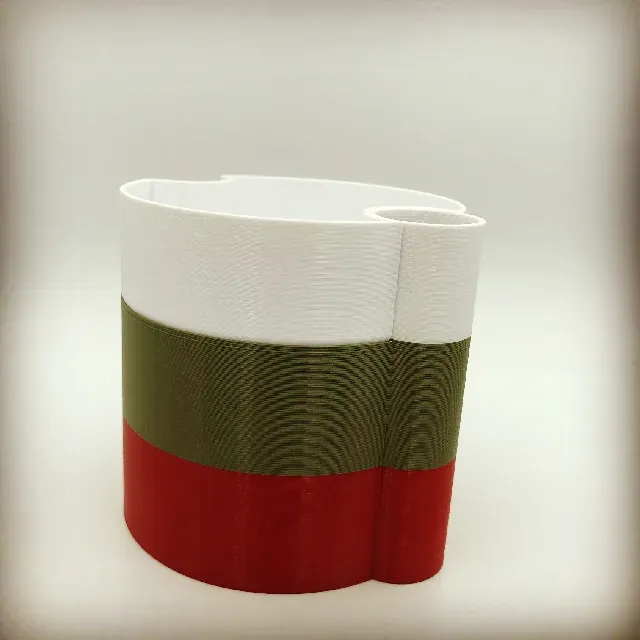

Use the colour change option in Slic3R to make stripes :-)
