Thinker S dual blower hotend - Remix for Linear Rail

Remix of https://www.thingiverse.com/thing:4431538

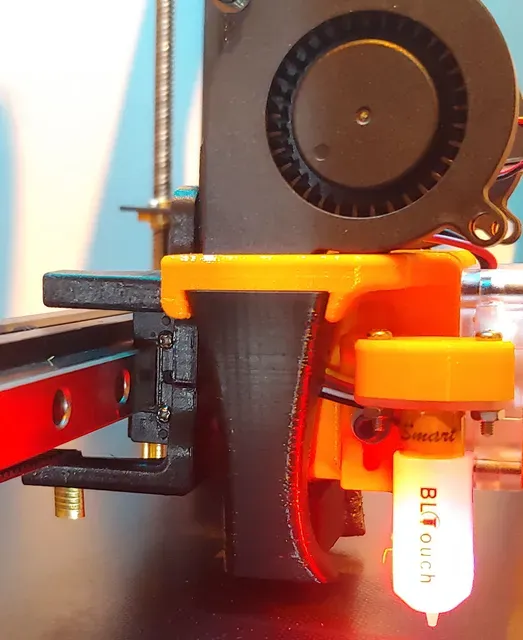

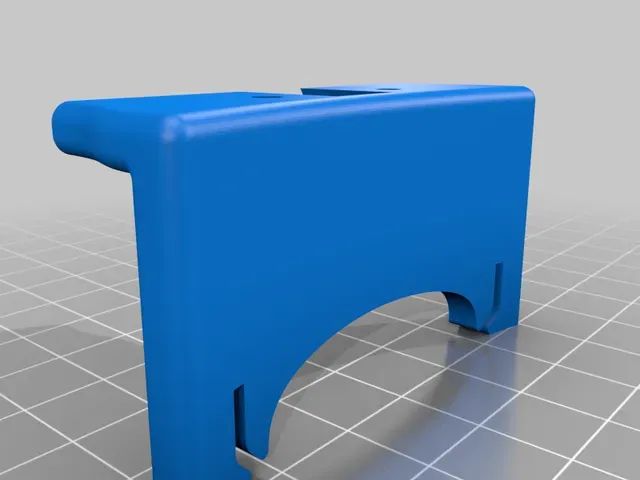

Remixed this designed this to be able fit my stock hotend on to a linear rail. I also redesigned the fan ducts to get better overhang cooling (WIP).

The X offset can be adjusted to account for minor alignment issues due to installation offset of the linear rail or carriage may have added.

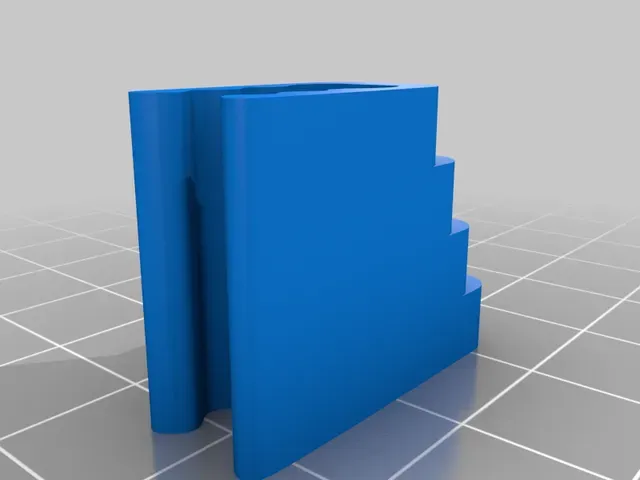

Their is a Y Axis Offset that pressure fits to the bed to offset it forward to re-center the hotend, this can be set to 2.5, 5, 7.5 or 10mm depending where you align it with the Y End stop.

Updates June 6, 2021:

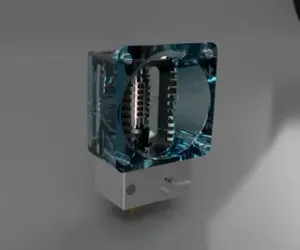

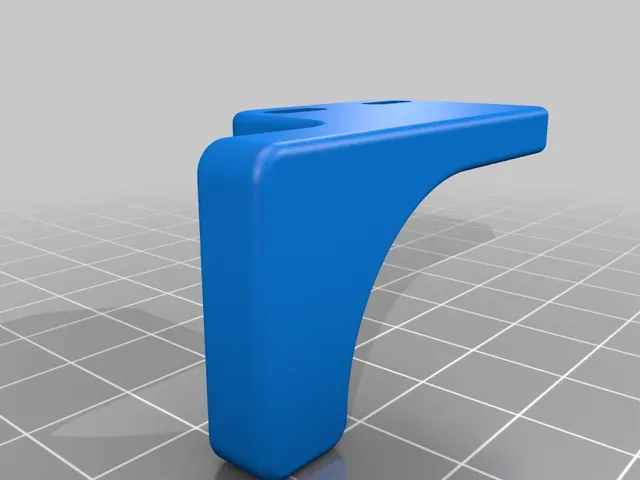

- Updated E3DV6_Fan_duct_right.stl and E3DV6_Fan_duct_left.stl based on testing with Dragon Hotend.

Updates June 30, 2021:

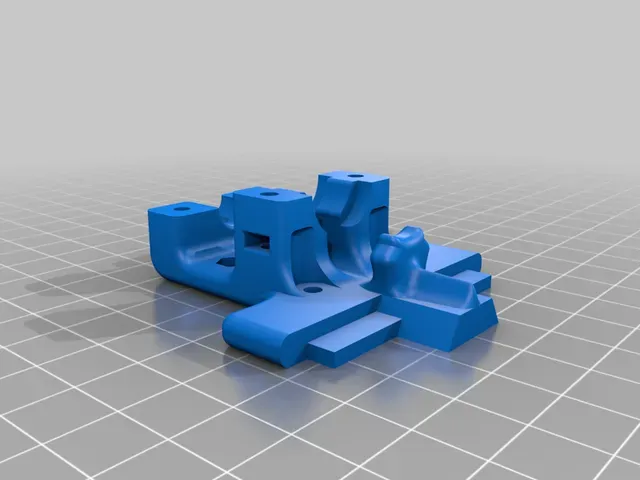

- Change Common_Base_plate_lower.stl to have more support between to stop bending on the X Axis belt tension and add space for E3D V6 and Dragon Hotend block heater.

- Add new Dragon_Base_plate_upper.stl to have bracket to stop rotation of hotend when removing nozzle when cold. (still testing) All other E3D V6 parts will work with Dragon hotend when using the E3D style next vs direct mount.

Please post makes, it's nice to see the makes.

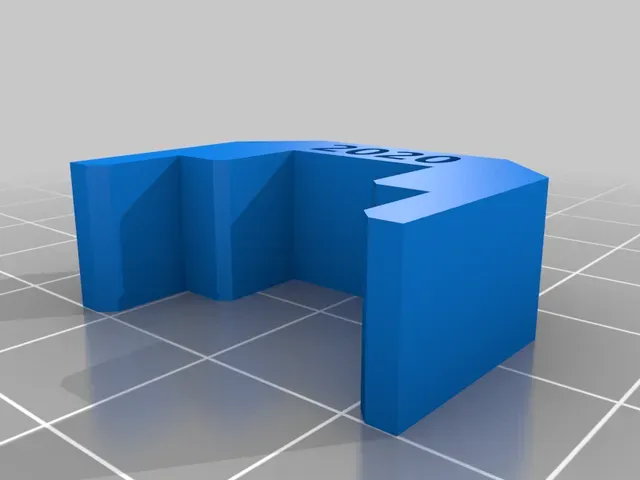

Included an alignment tool for installing the X Axis linear rail as provide from another mod.

Print Settings

Printer:

Eryone Thinker S

Rafts: No

Supports:

Yes

Resolution: 0.16

Infill:

50+

Filament:

Eryone PETG Orange, Black

Notes:

I only tested the fix on the Stock hotend I did make the design for the E3D V6 version first, by accident, however it is untested.

Category: 3D Printer Parts
