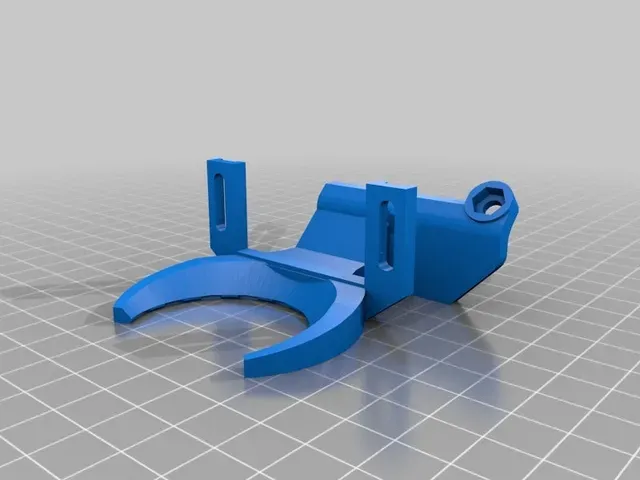

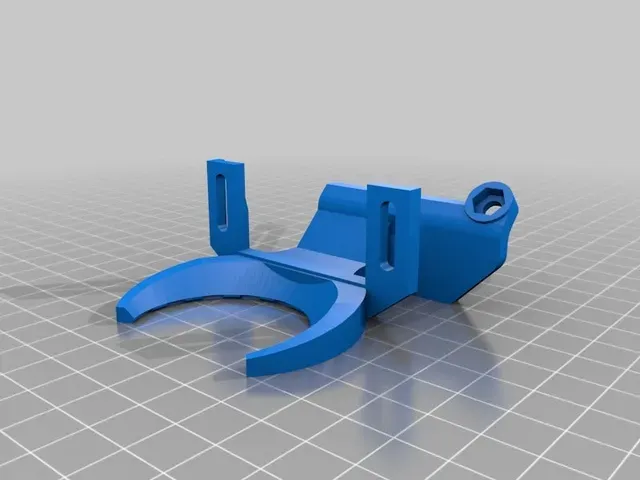

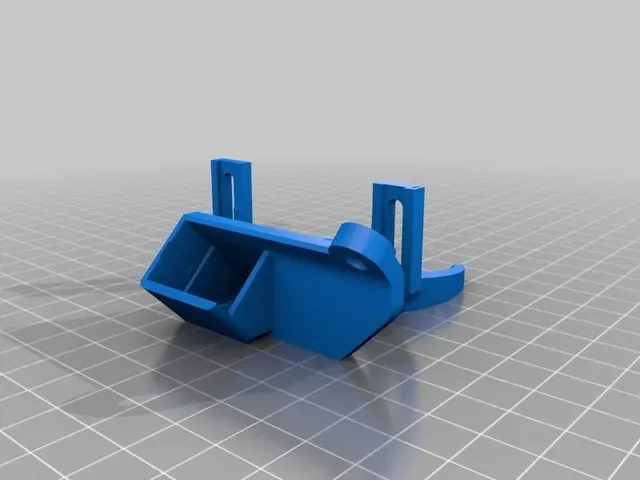

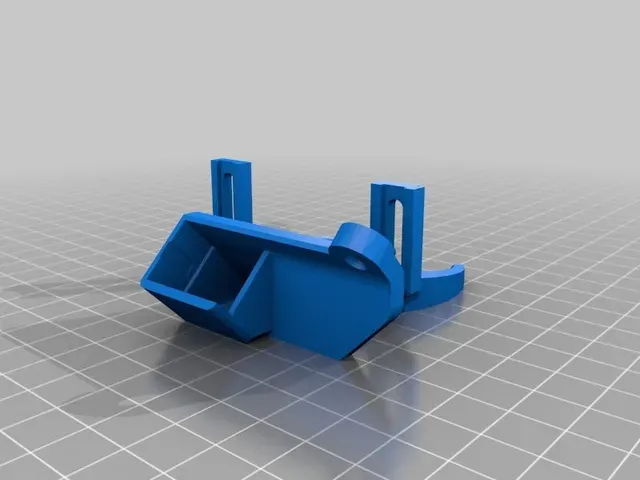

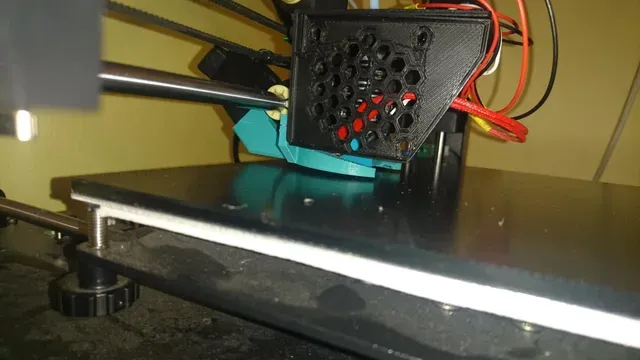

ANYCUBIC i3 mega ultrabase 5015 blower (turbo) fan cooling original hotend (e3d v5, can be used for E3D V6)

ANYCUBIC i3 mega ultrabase 5015 turbo fan (blower) cooling original hotend (e3d v5) Can be used for E3D V6

- increase print speed

- a nicer surface

FAN: SUNON MagLev: MF50151VX (MF50151VX-B00U-A99)

https://www.tme.eu/cz/details/mf50151vx-a99/ventilatory-dc-12v/sunon/mf50151vx-b00u-a99/

For more experienced users, I recommend using this Firmware:

Increases the fan voltage from 9v to 12v

supports both original drivers and TMC2208

protection against overheating

manual mesh calibration

pid calibration

https://github.com/davidramiro/Marlin-AI3M

Stable relase > hex fires

https://github.com/davidramiro/Marlin-AI3M/releases

19.1.2018 added V2 version (Fixed a thin wall bug)

22.1.2018 added V3 version (stronger holder)

22.1.2018 added V4 version (bug fix- for better height adjustment)

02.2.2019 added V5 version minor changes

Attention

make sure the connections are correct (red+/black-)

Print instructions
