Ender 3 - E3D V6 + Titan Direct Drive System

This Ender 3 - E3D V6 + Titan Direct Drive System is a remix of CR-10 E3D Titan Direct Drive Extruder Mount for V6 and Volcano from Chris Parish. You can find original version here; https://www.thingiverse.com/thing:2618672 Thanks for design....

I remixed 2 parts.

Main body. I modified gantry adapter for Ender 3 V2. This will also compatible classic Ender 3 and Ender 3 Pro. Maybe other Ender clones too. I changed back side of the gantry adapter; added a hole for BL Touch mount nut. I also changed cable router for adding cable ties...

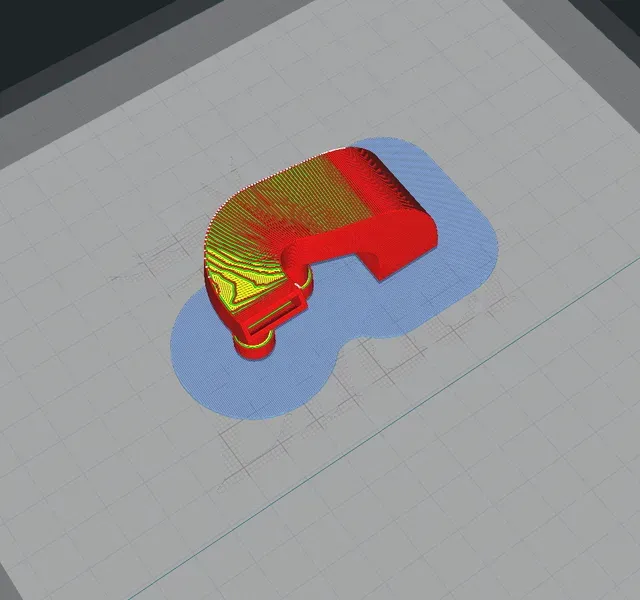

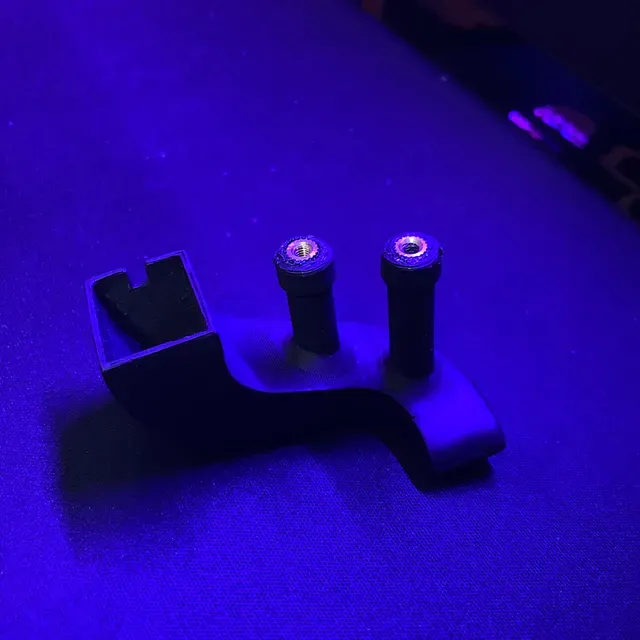

Duct system: You must insert 2x M3 captive nuts for easy installation. If you dont want to use captive nuts you can use the original duct. 100% compatible. You can download from original page. You can print duct system without support but i recommend to use raft. Please take a look to the pictures for orientation

You can download EZABL Probe mount from the orginal page.

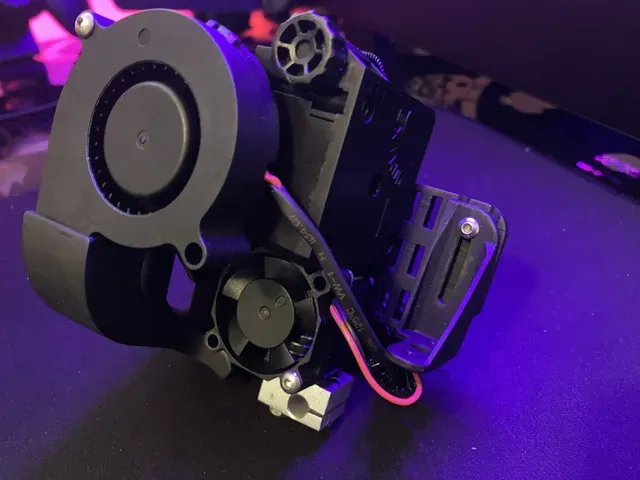

Update 16.03.2021 Photos added

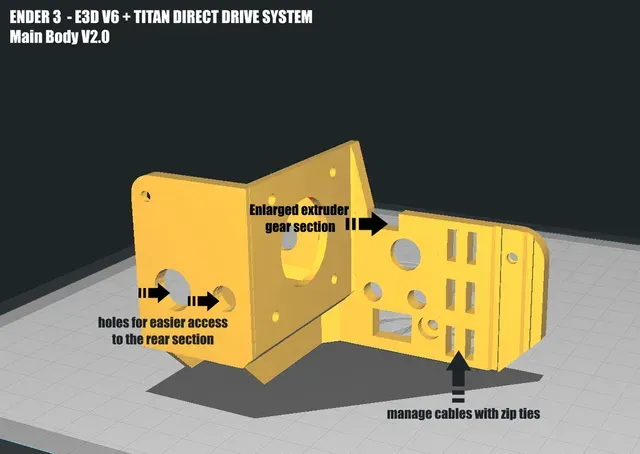

Update 15.03.2021 Upgraded main body uploaded. Now the gantry adapter has more accurate holes. I strengthened main structure. Added 3 pair of holes to route cables with zip ties. Added holes for easier access to the rear section. The section for the Titan extruder wheel has been enlarged
