Prusa MK3S+ RHD Fan Shroud Duct revC

The original fan shroud was not created be me. Link to original upload

https://www.thingiverse.com/rh_dreambox/designs https://www.thingiverse.com/thing:3249344

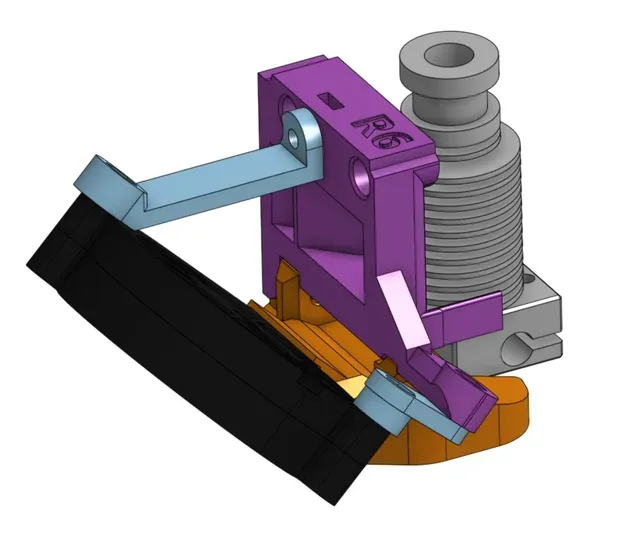

CAD model is done in OnShape and can be viewed here

https://cad.onshape.com/documents/69c960183a29be2b920411b4/w/2060f967ef76ca3b6e59a1d2/e/9fe12dbf58554bf449dd7cf6

I attached a technical drawing (pdf) if you are interested in the positioning of the fan shroud.

The fan shroud works very well. The fan should be dialed done for better layer adhesion. So far I usually used half of the fan speed default values used in Prusa Silcer and worked great.

A picture of the overhang test shows: left stock mk3s+, right this fan shroud. Printed with same filament spool and same gcode. The overhang test is linked in remixes.

Fitment: Prusa MK3S+ Only

Material: ABS/ASA for shroud, PETG for support brackets

Standard Prusaslicer settings, No supports needed.
