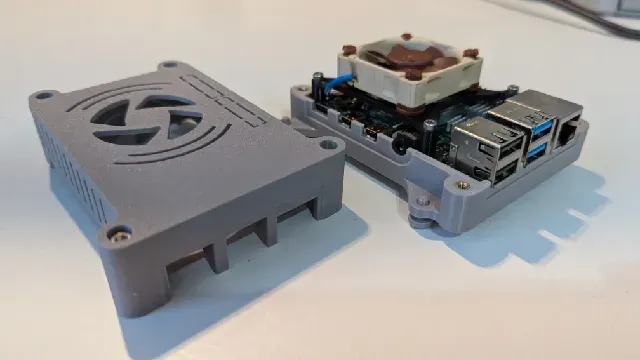

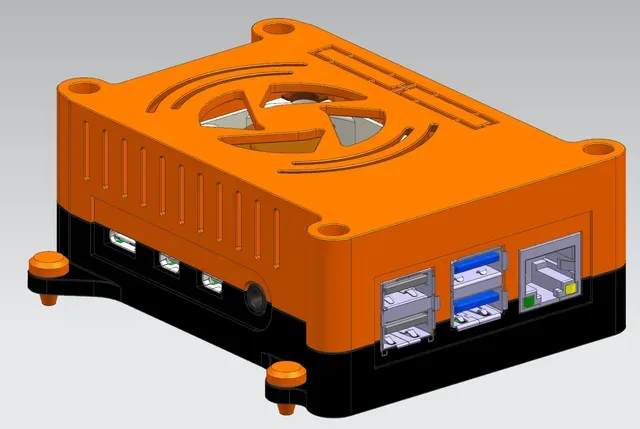

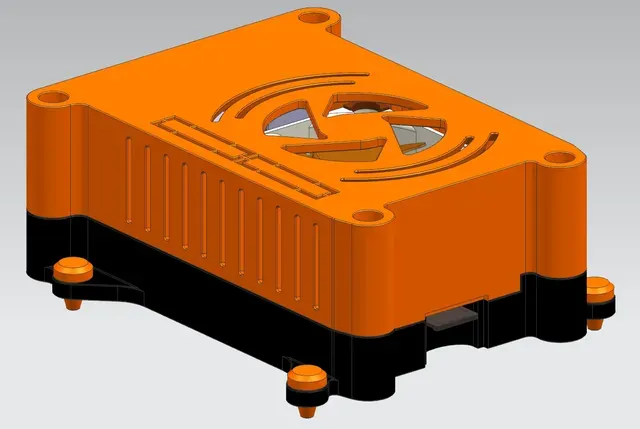

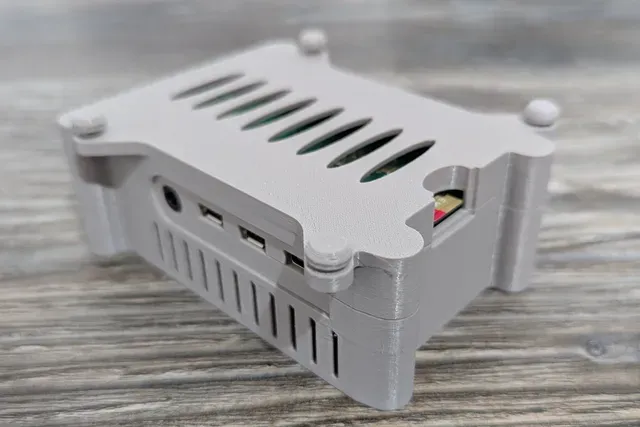

Raspberry Pi 4 case, VESA mount, internal fan

Case for a Raspberry Pi 4

Features

- VESA mount (75mm x 75mm) - Internal fan mount (40mm x 40mm x10) - optional - Thread inserts (case and pi mounts) - Footer pins - optional Required parts

- Raspberry Pi 4 Optional parts

- Fan 40x40x10, 5V → Noctua NF-A4x10 5V incl. anti-vibration mounts - 4x Anti-vibration mounts (See fan) - 2x 1P Single Dupont connectors Mount case

- 4x M3 thread inserts → Ruthex RX-M3x5.7 - 4x Cylindrical head screw M3 x 16mm Mount Raspberry Pi / fan

- 4x M2.5 thread inserts → Ruthex RX-M2.5x5.7 - 4x Cylindrical head screw M2.5 x 16mm Optional M3 thread inserts and screws can be used. Attention the mounting holes on the Raspberry Pi must be redrilled. GPIO pinout fan

Fan red cable (Positive pole)

- 100% fan speed: 5V power pin e.g. GPIO 2 - Reduced fan speed: 3V3 power pin e.g. GPIO 1 Fan black cable (Negative pole)

- Ground pin e.g. GPIO 6
