RatRig Vcore-3 MGN9 carbon gantry

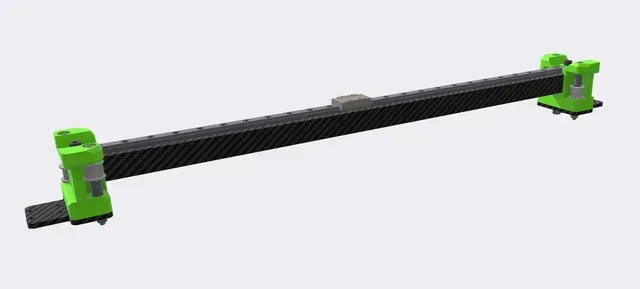

Here is my design for mounting a carbon square tube and MGN9H rails on RatRig Vcore-3.

This also solves some issues while tightening XY joiner plates and pulleys/idlers alignement.

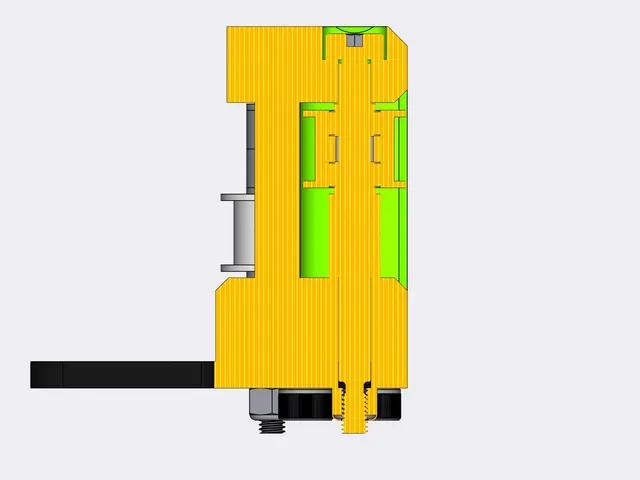

Note1: New XY joiners can be used on it’s own with original 2020 aluminium extrusion but you still need shoulder screws.

Note2: Original MGN12 linear rail can be retained if you are not looking for big weight reduction. Simply drill carbon tube accordingly

[20220313] Added reinforced X_endstop that come flush with XY left joiner (only for use with MGN9). [20220624] Increase tolerancy on Carbon tube insert for better fitting with nylstop nuts

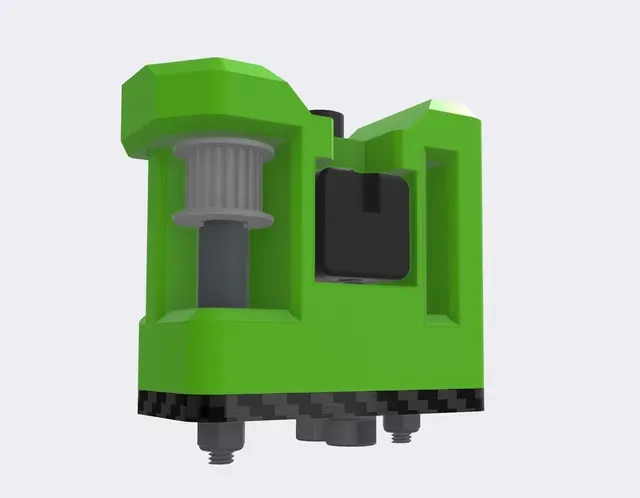

XY joiners rev1.1: aesthetic change plus weight reduction

---Parts---

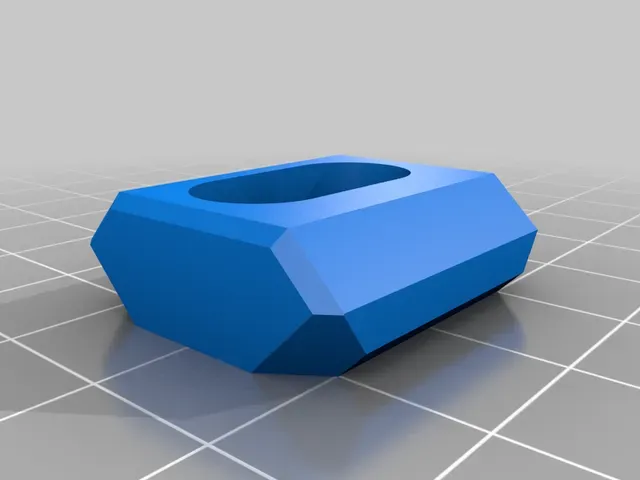

- Left/Right XY joiners (printed) - 4x Shoulder screws D5x50mm M4 + nuts - 4x M5x30mm socket head screw - 2x M5x10mm socket head screw - carbon tube insert (printed) - 6x M5x7x6mm brass inserts - 2020 carbon square tube - MGN9H linear rail - X_endstop_MGN9H (printed) ---Tools---

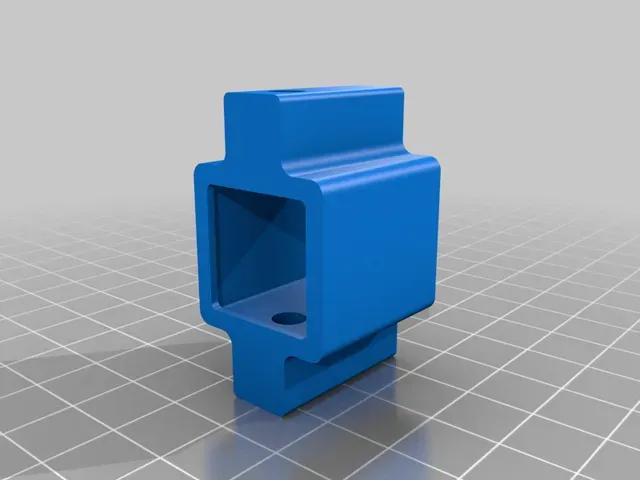

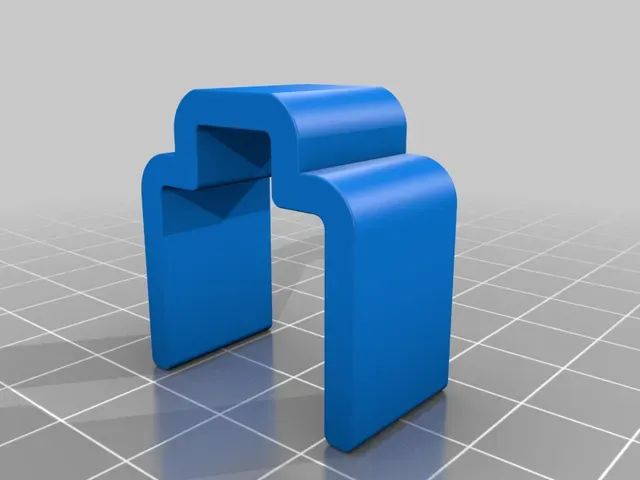

- Drilling guide (holes for XY joiners) (printed) - MGN9 aligning tool (printed) Print Settings

Printer:

RatRig Vcore-3

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

30%

Filament:

/ ABS/ASA/Nylon-CF

Notes:

Layer height: 0.2 Perimeters width: 0.45 4 perimeters

Category: 3D Printer Parts
