Smartphone Bicycle Mount

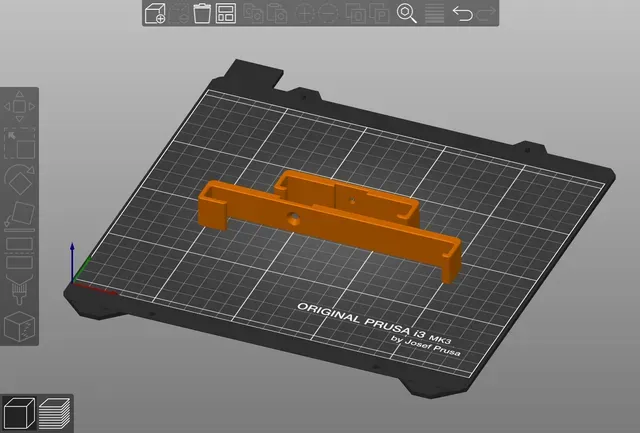

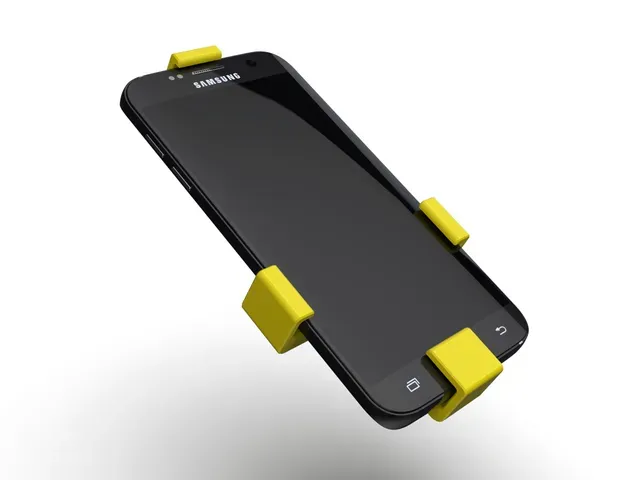

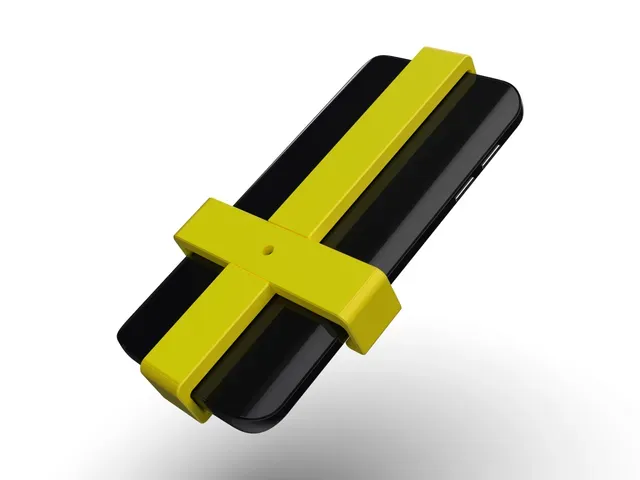

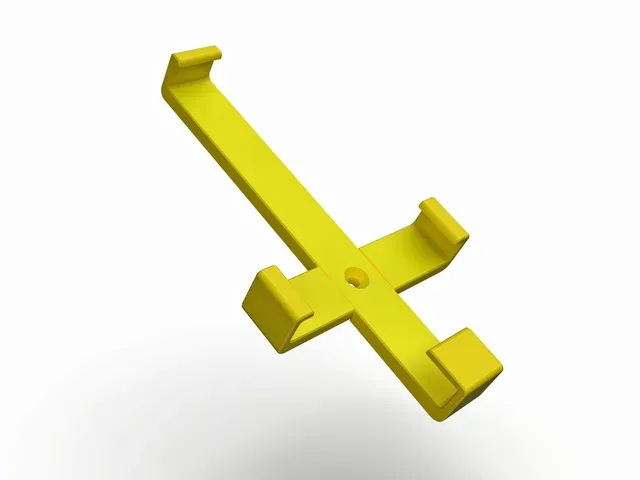

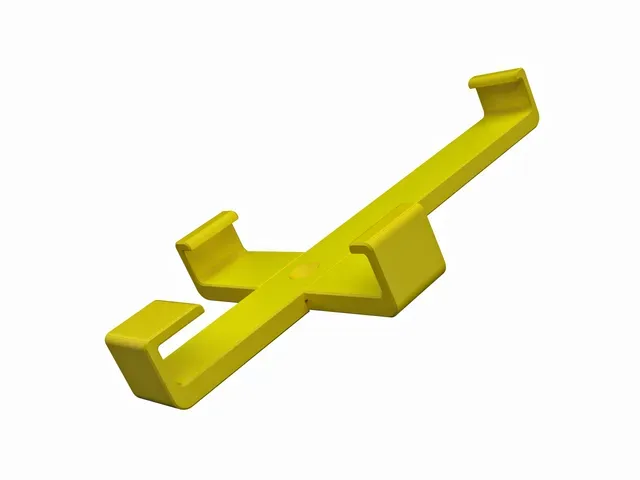

This phone holder is designed for 5.5" smartphones and uses a single mounting hole for a countersunk M4 bolt. Use the print orientation as shown in the images, as this requires no support material.

Do not use too many walls/perimeters, as this will make the longer part of the phone mount too difficult to bend. You need some flex to insert your smartphone.

My phone is a Xiaomi Redmi Note 3 Pro, which has a regular TPU case on it.
