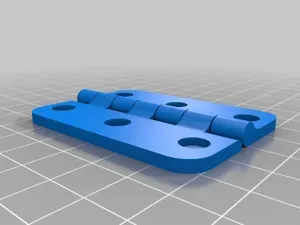

Thin oneclmn Hinge

Customized version of https://www.thingiverse.com/thing:2187167

Created with Customizer! https://www.thingiverse.com/apps/customizer/run?thing_id=2187167

Instructions

Using the following options:

enable_male_leaf = 1

enable_female_leaf = 1

enable_fillet = 1

enable_pin = 1

enable_auto_pin_size = 1

enable_pin_shaft_counterbore = 0

enable_fasteners = 1

knuckle_gusset_type = 2

throw_angle = 0

flip_model = 0

resolution = 128

component_color = Silver

hinge_width = 45.0

leaf_height = 60.0

leaf_gauge = 3.0

component_clearance = 0.4

knuckle_count = 7

pin_diameter = 3.0

top_pin_shaft_counterbore_diameter = 6.5

top_pin_shaft_counterbore_depth = 2.5

top_pin_shaft_counterbore_shape = 0

bottom_pin_shaft_counterbore_diameter = 6.0

bottom_pin_shaft_counterbore_depth = 2.5

bottom_pin_shaft_counterbore_shape = 2

fstener_head_type = 0

counter_sink_depth = 2.5

fastener_thread_diameter = 3.5

fastener_head_diameter = 7.0

fastener_count = 3

fastener_column_count = 1

fastener_margin = 3

Category: Parts
