Toy Train BNSF locomotive BRIO / IKEA compatible

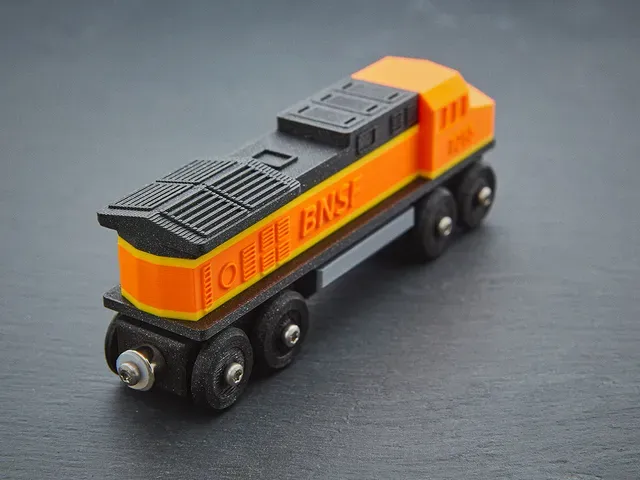

BNSF diesel locomotive toy train (BRIO / IKEA compatible)

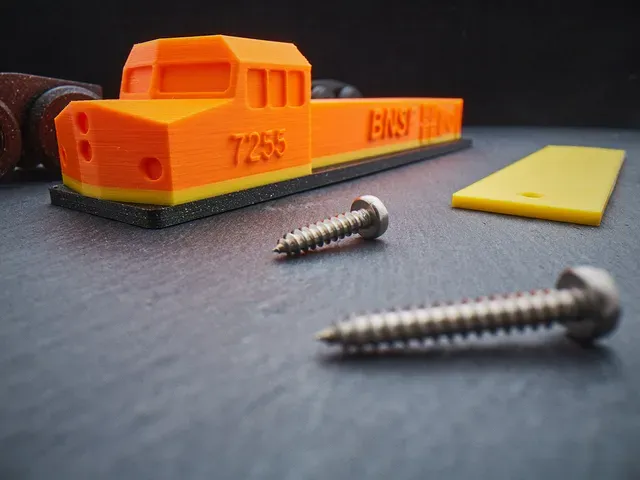

You will need the following screws to put everything together. 14x ISO 14585 (DIN7981) 2.9mm x 13mm ( https://amzn.to/3WgKty1 ) 2x ISO 14585 (DIN7981) 2.9mm x 19mm ( https://amzn.to/4dcUVgP ) I may earn a commission on qualifying purchases (at no extra cost to you)

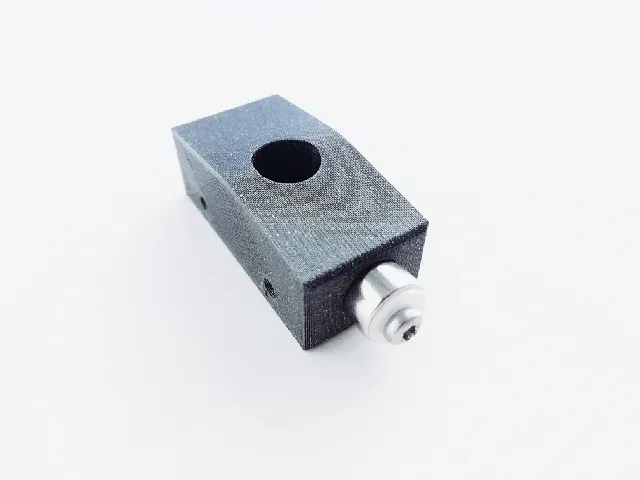

Add ring magnets on each side of the train. Use 2x ISO 14585 (DIN7981) 2.9mm x 13mm screws a plastic washer and small neodymium ring magnets diameter 10mm outer / 4mm inner with height of 5mm. ( https://amzn.to/3YdC6G4 )

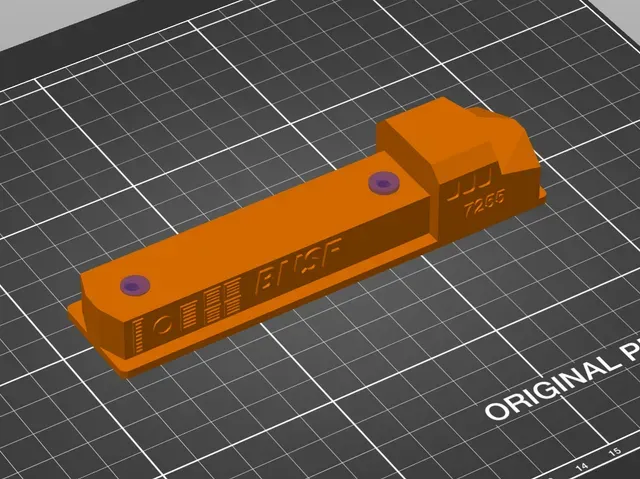

The GCODE of "bnsf_train_body.gcode" contains 2 filament color changes at 2.80mm (Layer 24) and 4.80mm (Layer 42) and the support enforcer.

If you enjoy these models and want to support me, check out my other toy trains with wagons, here. Thank you! Lovely 3D printed Toy Trains

Print instructions

You will need to add supports for the following parts:

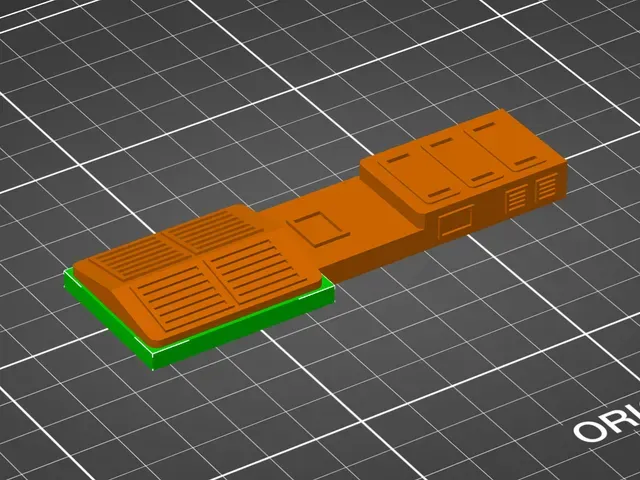

belly.stl (normal supports for counterbored holes) bnsf_train_body.stl (support enforcer for counterbored holes) roof.stl (support enforcer for the roof at the back)

Prusament Galaxy Black PLA Prusa Yellow PLA Prusa Orange PLA Prusa Silver PLA
