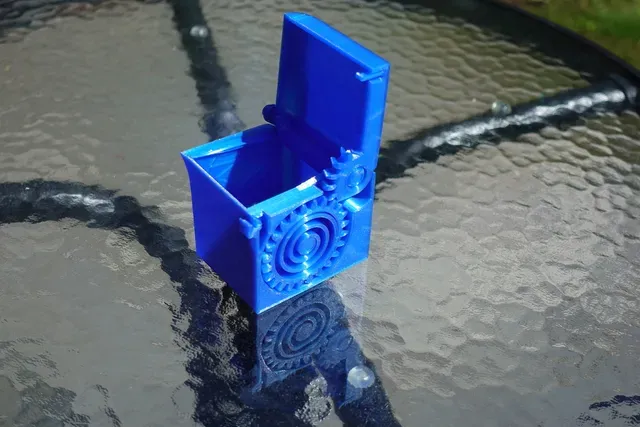

PRINT-IN-PLACE SPRING LOADED BOX

This is my Print in place spring loaded box design! No supports, no assembly, just print and use! See it in action here: https://youtu.be/IrT1DaSBeQ4

All clearances are 0.3mm or greater, so most household 3d-printers should have no problems printing it. however, if you suspect you might need a little tuning, I did include a test piece to tune your printer!

I created an Instructables about this project going more into detail about the design choices and tricks that I used to make it work, you can find that here: https://www.instructables.com/id/Print-in-Place-Spring-Loaded-Box

Important:

-Use 0.2mm layer height or finer! (this is due to the overhang being designed for it)

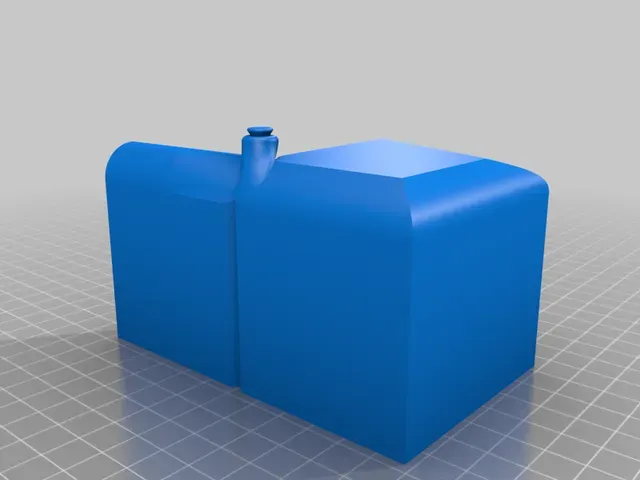

The print should be positioned on its side as shown in the video during printing. (gears down)

-No Suport

Please leave your questions and comments in the comment field, and I’ll do my best to answer them. Every like is appreciated! :)

Update! I have now a Partreon, chek it out! https://www.patreon.com/Turbo_SunShine

Check out my social media : YouTube Facebook Instagram

Print Settings

Rafts:

No

Supports: No

Resolution:

0,2mm

Custom Section

Category: Household
