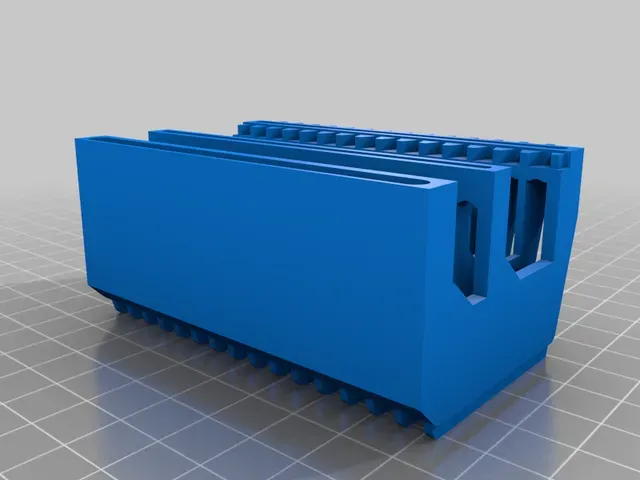

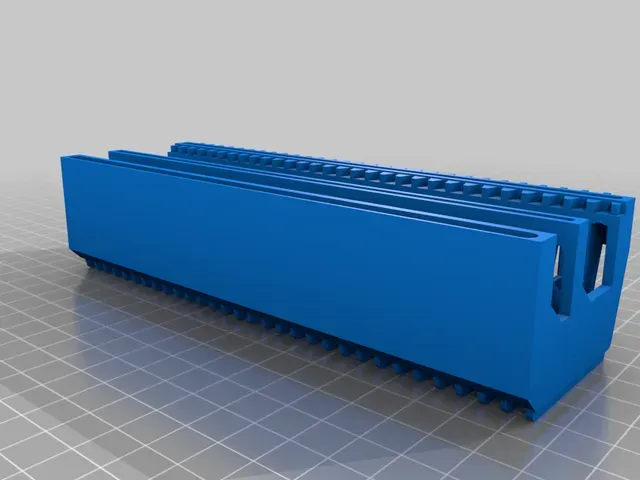

Slide magazine/slide tray European standard 35mm/5/5cm

This is a European standard slide tray in different sizes (one roll of 35mm film can give up to 42 images if you load your camera right). This design works perfectly with Leitz (Leica) line of Pradovit projectors.

If you want a tray of specific capacity you can ask in the comments.

Print Settings

Printer:

Craftbot2

Rafts: Doesn't Matter

Supports:

Yes

Resolution: 0.2mm

Infill:

20% gyroid

Filament:

Fiberlogy PLA grey

Notes:

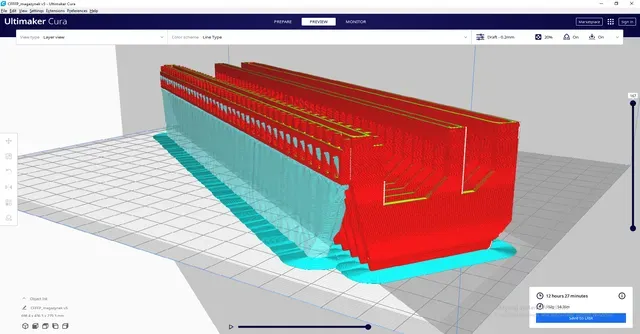

Support is only needed on a 90° overhang as shown on a picture below.

Post-Printing ============= cura tree supports

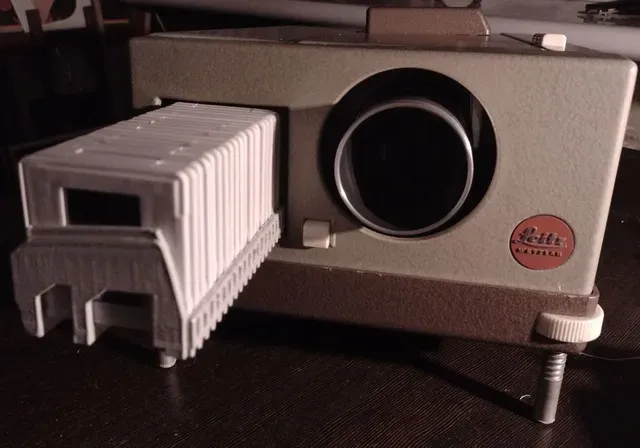

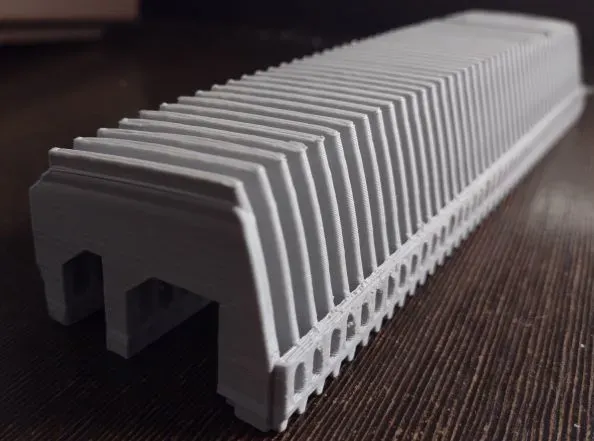

printed magazine:

printed magazine

short video showing it working:

short video showing it working:

Category: Camera
