Light Touch Switch

The Light Touch Switch is a cost-effective 3D printable accessibility switch based on an initial design by Kevin Cross . It's an assistive device used by people with physical disabilities to control electronics (e.g. phones, computers, adapted toys, game controls, etc.).

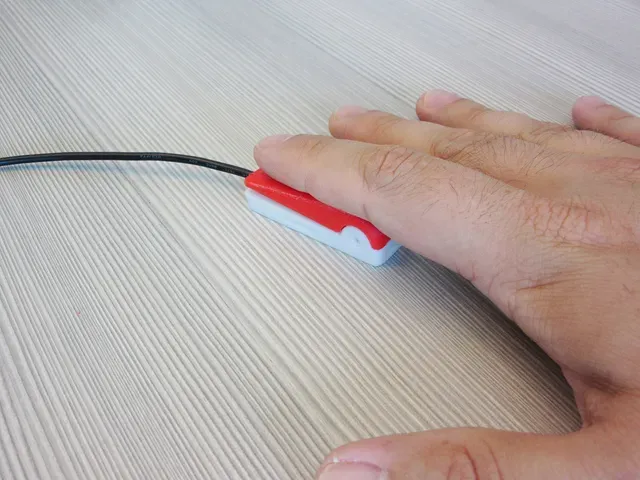

This particular switch is well-suited for use by a finger. It can be plugged into any standard 3.5 mm AT interface and even the Xbox Adaptive Controller.

Print Settings

Infill : 20%

Resolution : 0.2mm

Supports : Yes (only for the switch cap)

Rafts : No

Bill of Materials

To assemble the switch, you will need:

- 1 – 3D Printed Switch Base - 1 – 3D Printed Switch Cap - 1 – 3D Printed Hinge Pin - 1 – 3.5 mm mono cable - 1 – 12 mm tactile switch - ~1/3 – stick of hot glue - 1 – 3D Printed 12 mm switch soldering jig (Optional)

Build Tutorial

Printed assembly manual can be found in the Files tab.

Additional Documentation

https://makersmakingchange.com/project/light-touch-switch/
