Angle Slider fence end caps

This is a remix of https://www.thingiverse.com/thing:4757284

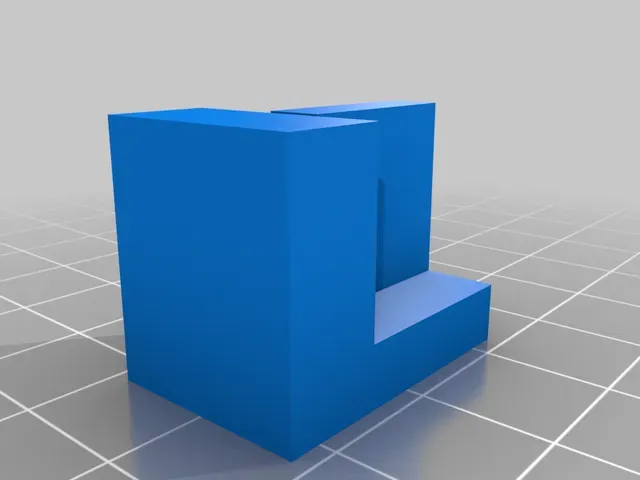

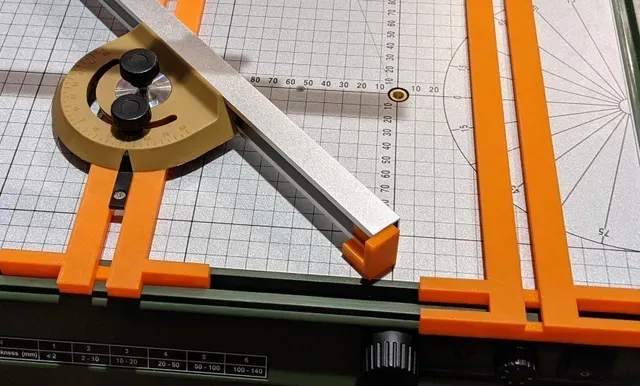

I really liked using the angle slider that Guerrero4de created for the Proxxon Thermocut, however I kept getting annoyed at how the fence would still shake a lot since it's no longer resting on the machine. So I designed a really simple end cap plug that would let the ends of the fence sit on the machine instead of floating freely.

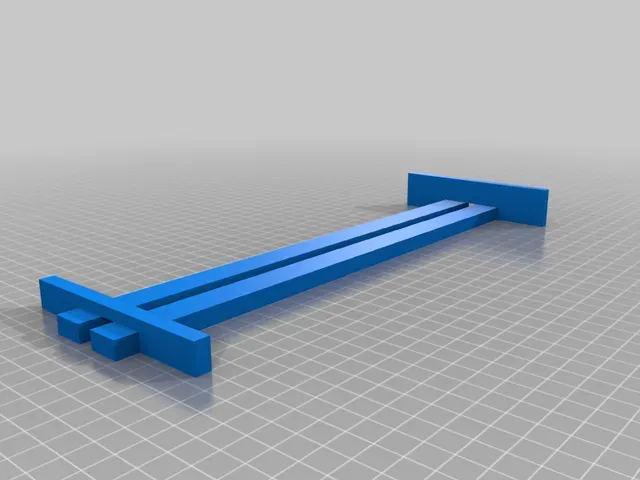

I also did a slight modification to the angle slider itself, making the rail that the fence sits in tall enough that you can actually lock the fence in place somewhat when using it. I also made it have a tighter fit to the thermocut itself.

Print Settings

Printer:

Raised3D E2

Rafts: Doesn't Matter

Supports:

No

Resolution: 200

Infill:

20

Filament:

PolyMaker PLA

Notes:

The end caps print vertically, so no support is needed. The remixed angle slider is printed upside down to also remove the need for supports.

Category: Parts
