Mountaineers Connectors and Supports

Some connectors/supports for Mountaineers to help make the mountain boards more stable.

Print Settings

Printer:

Ender 3

Rafts: No

Supports:

Yes

Resolution: 0.2

Infill:

10%

Filament:

Hatchbox PLA Black

Notes:

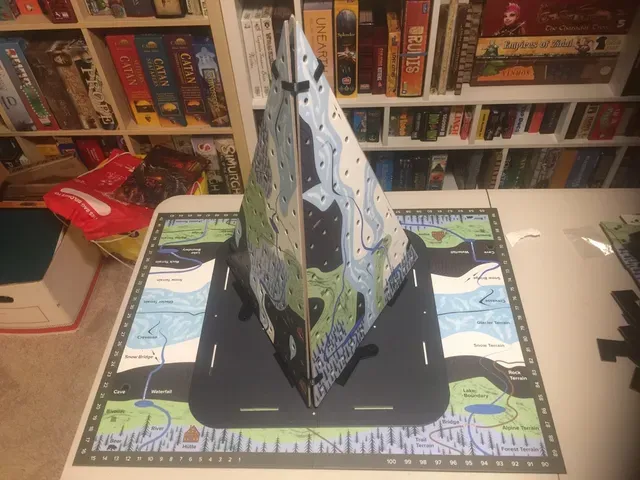

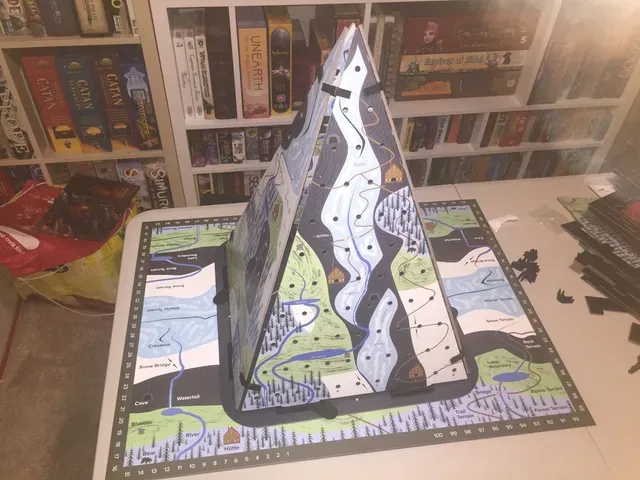

These are some pieces I put together to help stabilize the mountain during gameplay.

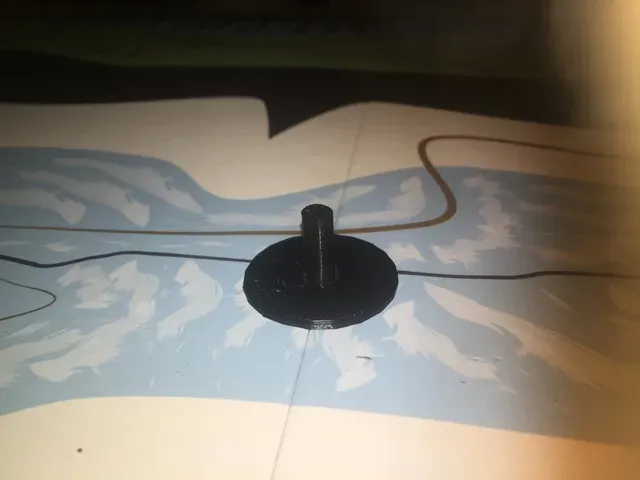

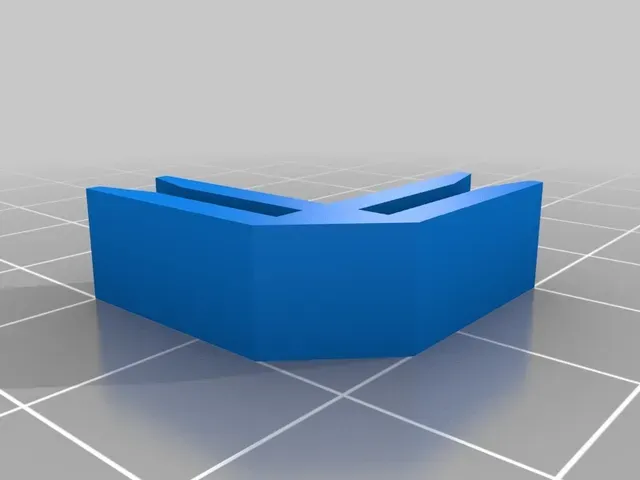

The spindle sits under the main game board, with the printed washer on top between it and the mountain board as a spacer. The mountain connectors dual.stl and 60-deg.stl should be printed at 115% scale. I found at that size it holds securely without pinching the boards too much.

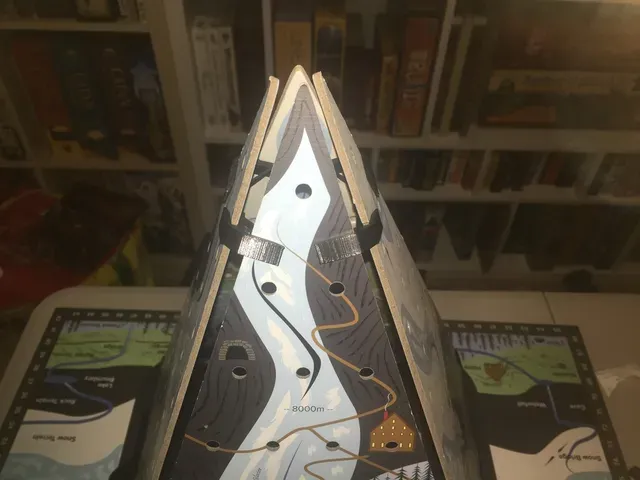

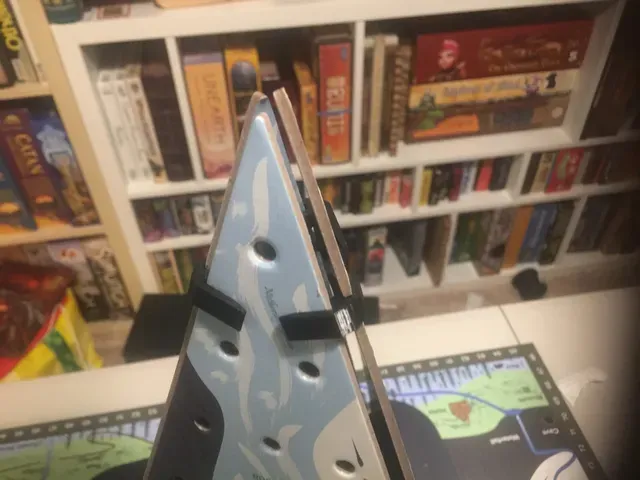

With the corner clips holding the mountain together, the tabs no longer fit in the slots in the mountain board.

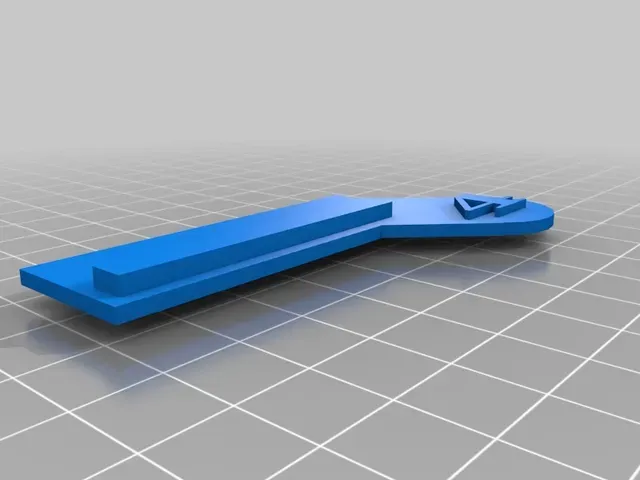

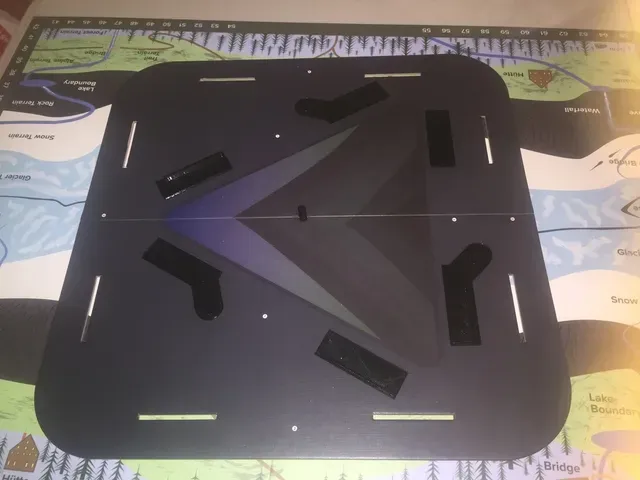

The base pieces were designed to solve that problem. The offset a ridge to keep the assembled mountain centered with its now slightly larger base dimensions.

I may still refine these further. The part that fits into the mountain board is a little looser than I would like.

Four of these pieces also have numbers on them to designate the mountain side. This is necessary as the now larger base dimensions cover up the printed numbers, and for the three side mountain all of the sides printed say 1 anyway.

For a minimum set you will need one each of Mountain 1 through 4, and four of Mountain 0. For the clips, you will need 8 of the dual, and 6 of the 60-deg.

How I Designed This

Designed in TinkerCad
