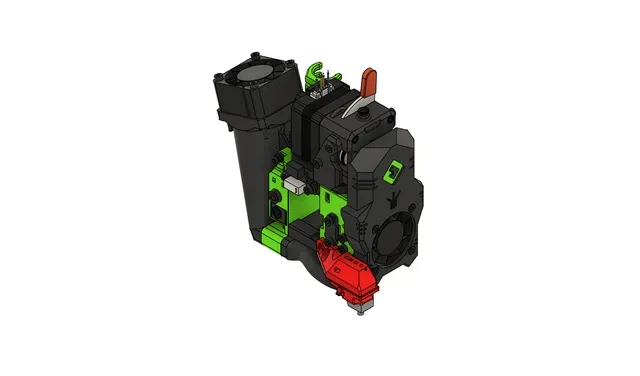

Klicky and UnKlicky for VCore3 (V3 and V3.1)

This is the release of Klicky for the VCore3.

These parts have all been tested and are working on a few early adopters' machines.

Please go to the release blog post or the klicky github for a full installation guide for the Klicky probe.

BOM

2 x M3*20mm Aliexpress 2 x M2*10mm self tapping screws Aliexpress 2 x M3 x D4.6 x L4.0 heat set inserts Aliexpress 7 x 6*3mm magnets Aliexpress Amazon 1 x D2F switch Aliexpress 24AWG wire Aliexpress

Print settings

Print everything except the piston probe body and piston with 0.2mm layer height using a 0.4mm nozzle. Recommend 4 walls, 4 top/bottom layers and 40% infill.

For the piston probe body and piston print them with the same settings but at 0.1mm layer height. You may also want to add a scaled up and down piston (by 1-2%) in addition to the provided size as the fit is important.

Assembly

Check out the full installation guide at 3dpandme or a quick youtube guide

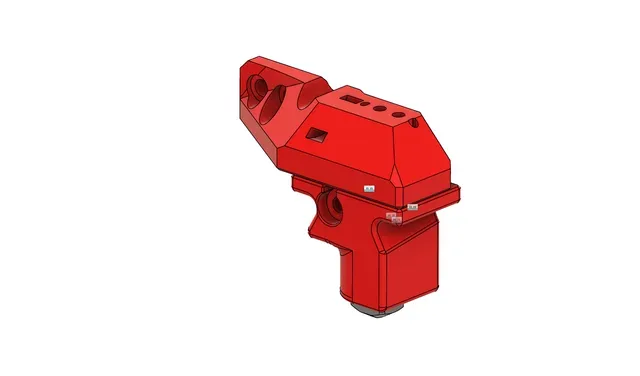

UnKlicky

Unklicky is still in BETA support and documentation will follow shortly!

ToDo

- Add probe dock for VMinion - Add documentation for UnKlicky Compatibility

I have tried my hardest to design this mod to be compatible with as many popular combinations as possible. This work has been extended further by Arlock.

VCore3

- Standard frame - OpenFront mod - Official enclosure EVA3

- All configurations except the tank shroud EVA2

- All configurations Not compatible with the top MFBS mods. Please see the mod Arlock has released that adds compatibility with that ecosystem.

Support me

Take a look at the development process on my blog www.3dpandme.com or social media accounts @3dpandme

Support me by buying your switches and magnets from my affiliate links or by buying me a beer
