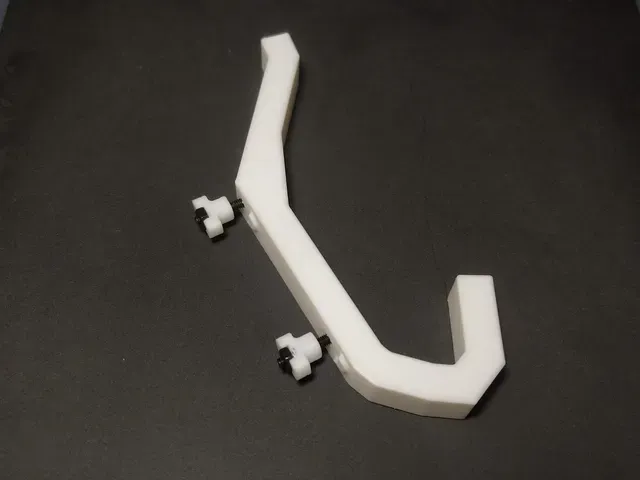

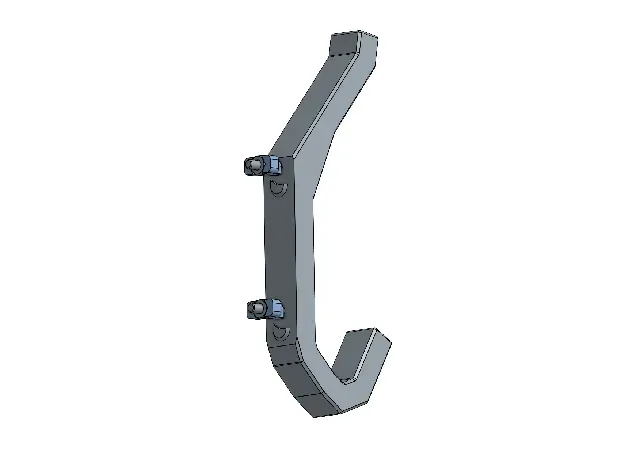

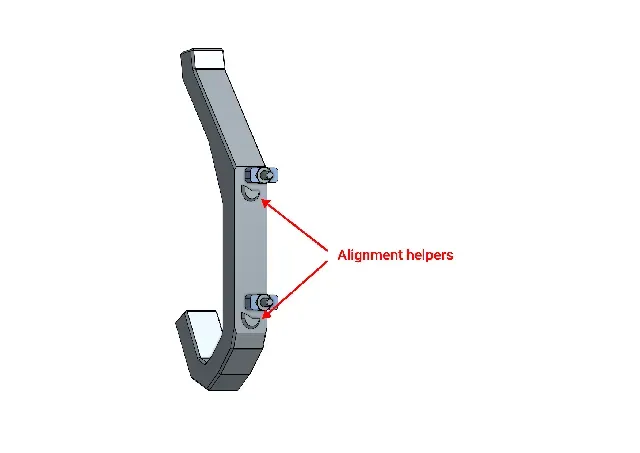

T-Nut Example Hook for Ikea Skadis

This is a hook that serves as an example for how to use the T-Nuts for Ikea Skadis . It demonstrates the ease of use, strength, and sturdiness of the T-Nuts.

Read more about the Skadis T-Nuts Mounting System and check out the Skadis T-Nuts Collection for more Skadis accessories that use T-Nuts.

M2 Version

Required Hardware

Qty Description Sourcing

2 M2 DIN934 hex nuts Aliexpress

2 M2x16mm socket head cap screws Aliexpress

Printed Parts

Qty Name Download

1 Skadis T-Nuts Hook M2 this project

2 Skadis T-Nut M2 Download here

M2.5 Version

Required Hardware

Qty Description Sourcing

2 M2.5 DIN934 hex nuts Aliexpress

2 M2.5x16mm socket head cap screws Aliexpress

Printed Parts

Qty Name Download

1 Skadis T-Nuts Hook M2.5 this project

2 Skadis T-Nut M2.5 Download here

Printing

Print 2 Skadis T-Nuts according to the instructions . It's recommended to use a material with superior layer adhesion for the T-Nuts, such as PETG.

Print the hook flat on its side (STL is pre-rotated).

- 3 or more perimeters depending on the desired strength - 20% infill - 4 top, 4 bottom solid layers
