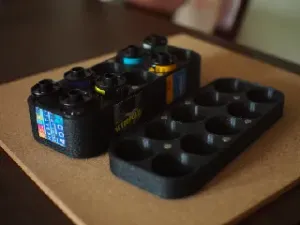

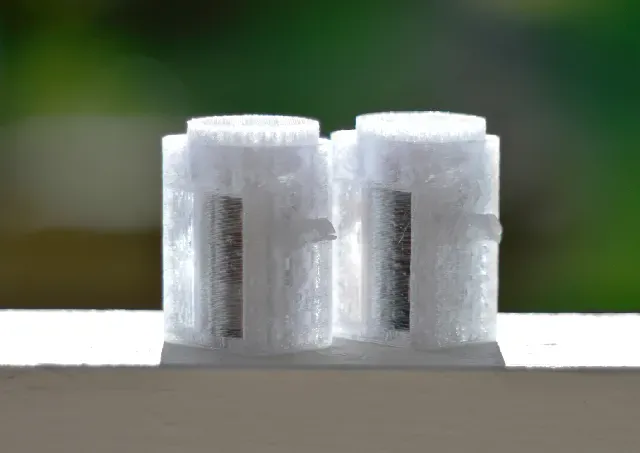

Modular Snap-Together 35mm Film Storage Boxes

This was an interesting experiment in snap-lock mechanisms. It took a lot of iterations to get everything working right, but this final version should (SHOULD) have all the issues ironed out.

The files include a film box module, a lid, and an ‘end cap' without the protruding latch at the end because it could potentially snag on something in a camera bag.

Everything prints with no support, except the protruding latch which needs some paint-on supports. The sides are designed to print one wall thick with an 0.6mm nozzle, so you can see through if you're using transparent filament! The .3mfs are for an 0.6mm nozzle and PETG.
