Velux (roof) window limiter

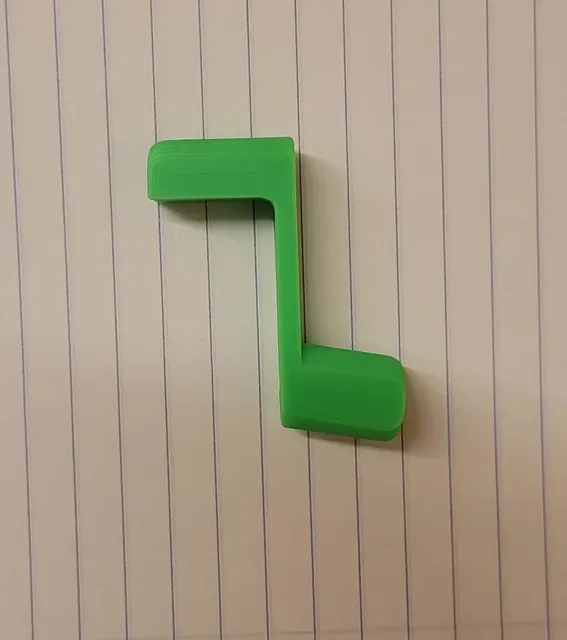

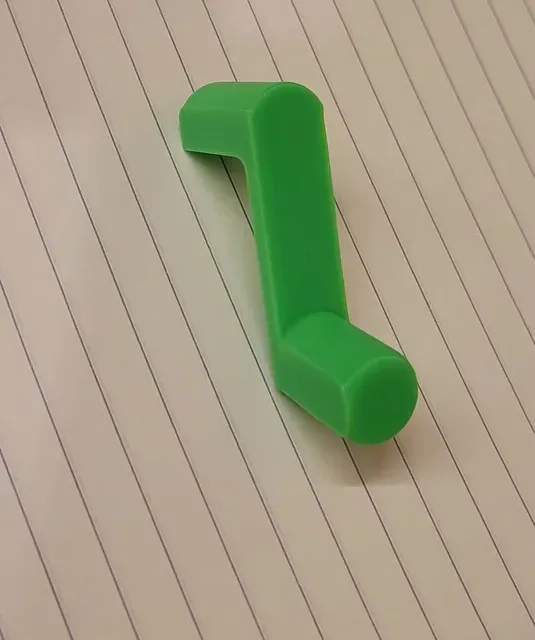

A simple push-in-the-hole window limiter for Velux GGU / GGL roof windows.

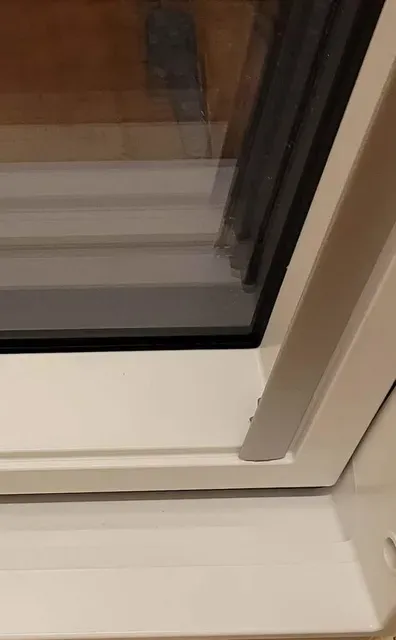

The velux roof window has a stock limited window opening which was too large for my use.

This limiter lets you open the window more than the ventilation setting but less than the stock limited opening.

It was printed with a 0.6mm nozzle and 0.32mm layer height, 4 walls and 35% infill in PLA+(15 minute print).

No brim/raft needed.

No post processing needed.

Print as oriented in the file (on its side) for best strength.

Fit is just right for the stock hole.

This simple item was designed in Tinkercad using iterative design (a few drafts :) )

If you need a different size, feel free to tinker with the design (see link below) or add a remix!

https://www.tinkercad.com/things/jkCZdPnpvyG-velux-window-limiter?sharecode=MwK2XL_k3QMCcJCEf_oXBAFCZo5vcHY_JvENTrq6WdQ

send a message if link is expired (updated May 2024).
