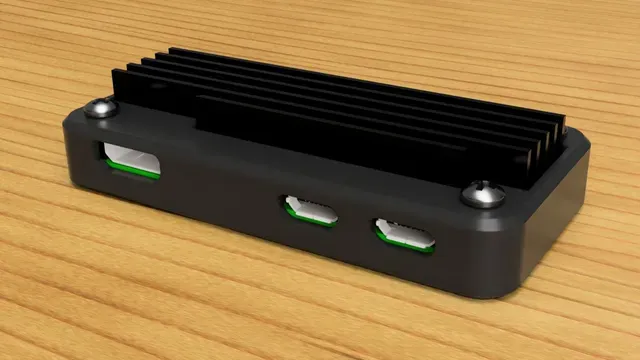

Raspberry Pi Zero 2W Heatsink Case

This Raspberry Pi Zero 2W case was designed around the Geekworm C296 Heatsink to have a low-profile and sturdy construction. The case, heatsink and Raspberry Pi are held tightly together with M2.5 screws and nuts. The nuts are inset flush with the case bottom.

The heatsink cooling allows overclocking the Pi with acceptable thermal margins (at least in my testing with RetroPi).

USB, HDMI, and SDCard ports are accessible but the GPIO and camera connectors are covered since I did not need them.

Additional Parts Required:

- Raspberry Pi Zero 2W (good luck finding one) - Geekworm C296 Heatsink ( https://geekworm.com/products/c296 ) - (4) M2.5-0.45 x 10mm Screws - (4) M2.5 Nuts Print Settings:

- Material: PLA (or better) - Layer Height: 0.2mm - Perimeters: 3 - Infill: 15% Gyroid - Supports: None - Bed Adhesion: Skirt - Printing Orientation: Top-side and Bottom-side down
