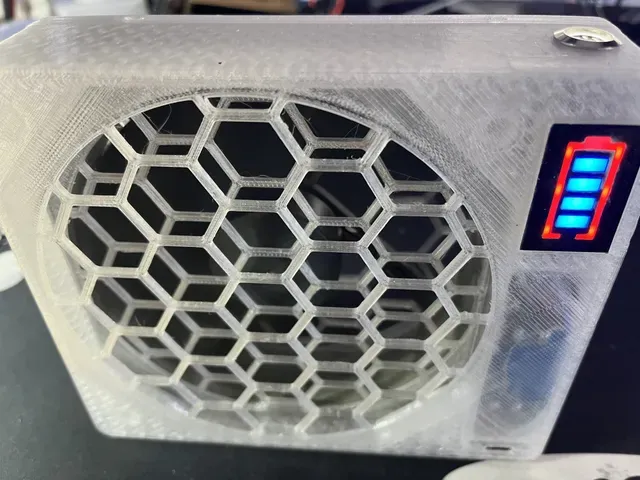

Solder Fume Extractor

Remix of Solder Fume Extractor by StriK3FoRC3 adding a few modifications for myself as I don't like to solder direct to Batteries, and have connectors to easily swap parts out.

This my first time using CAD. I have included the FreeCAD file to allow more modifications.

Changes

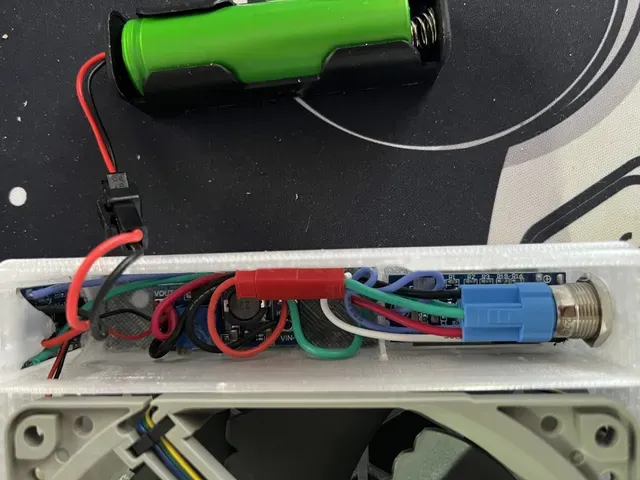

- Swapping the Micro USB port to USB C - Carving out the main battery holder section to allow a battery holder so not needing to solder to the battery - Larger fan wire hole to allow a 4 pin fan connector to go through - Flush push button What you will need

- 12V 120x25mm 3000RPM Fan (Any 120mm Computer Fan) - 1S 3.7v Battery Indicator https://www.aliexpress.com/item/1005001727427034.html - MT3608 Step Up Module https://www.aliexpress.com/item/1005002225004697.html - 18650 Battery Holder https://www.aliexpress.com/item/32842979487.html - 18650 TP4056 USB C Lithium Battery Charger https://www.aliexpress.com/item/32930640893.html - 12mm Latching Buttons https://www.aliexpress.com/item/32831175139.html - 18650 Lithium Battery - 4x M4 Screw (Cut to 16,5mm) - 4x M4 Nut - 4x M4 Washer (spacer For the Fan) - Activated Carbon Air Filter https://www.aliexpress.com/item/4001305636978.html
