Pool Cup Holder

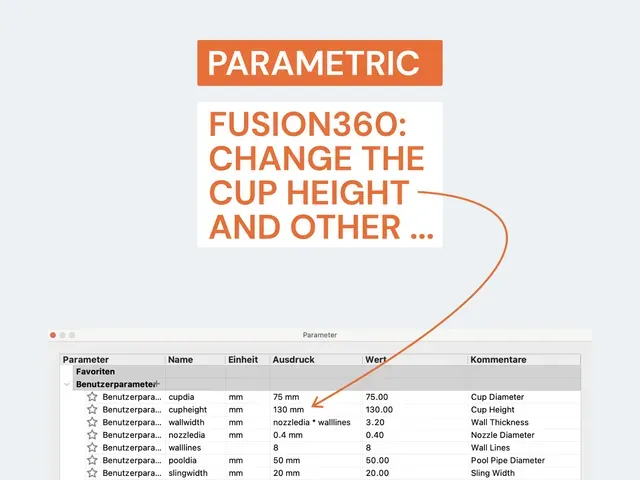

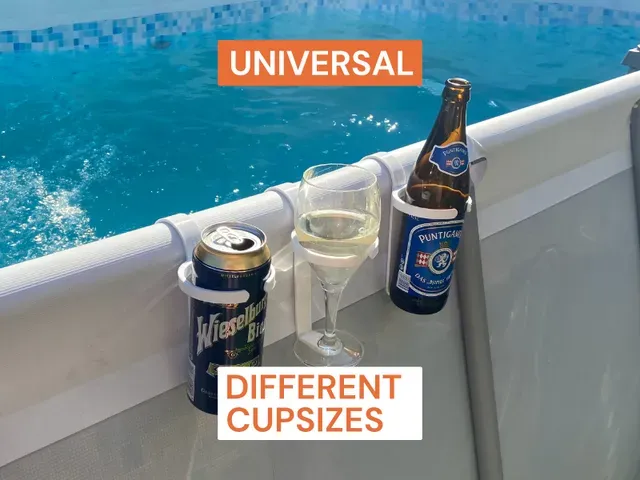

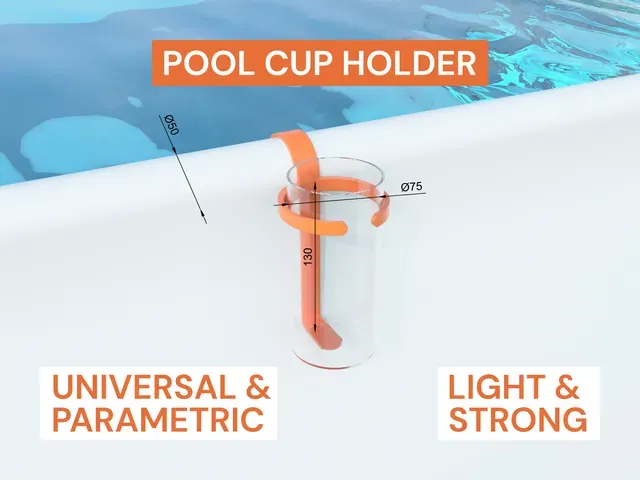

This universal cup holder was designed for a Bestway pool (pool pipe diameter: 50mm) and different glasses (ring diameter: 75mm, ring height: 130mm). However, I drew it parametrically in case someone has a different pool or wants to hold different glasses in it. The following can be changed in the Fusion 360 file: pool pipe diameter, cup diameter, cup height, ... and much more.

Material costs

I designed the model to be as minimalist as possible. The holder is printed in 2 hours and only requires about € 0.75 PETG. (The Original Bestway Cupholder costs € 7.50)

Print settings

Supports: none Infill: 20% Nozzle: 0.4mm Layer: 0.2mm Filament: PETG (ASA)

Post processing

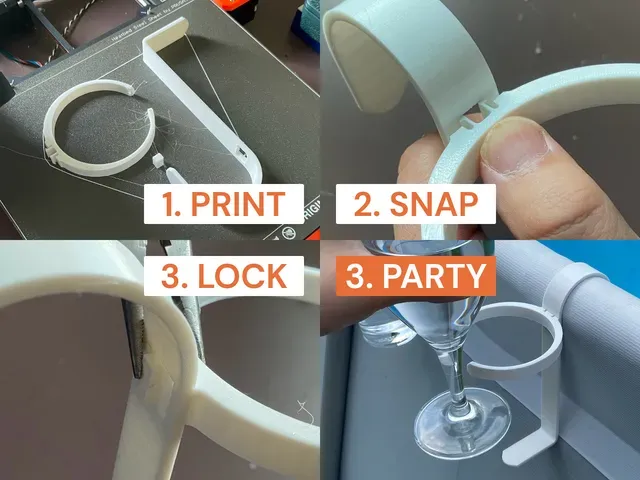

After printing, the ring only has to be snapped into the hook and locked with the small block.
