Remix of EIBOS Series X: Easdry Upgrades (for filament spools <80mm wide)
Printables
3D-модель · Printables
EIBOS Series X: Easdry shelf for IKEA Skadis
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY-NC
- Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
- Форматы
- 3MFSTL
- 19 Лайки
- 83 Загрузки
- 0 Напечатали
- 3 Комментарии
- 999 Просмотры
Описание
[PREFACE: The photographed shelf holder is wider than the uploaded model. The uploaded model matches the manufacturer's specs and has 2 fewer columns of hexes. I widened my Series X to fit wider spools so my shelf is also wider.]
I designed this holder with hexagons on the bottom to lighten the filament usage and give me access to the EIBOS in two orientations: (1) temp knob facing the ground and (2) power switch facing the ground.
Print information:

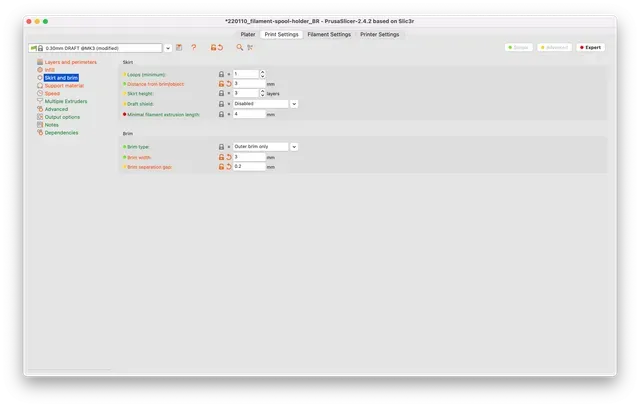

- I printed with Jessie PLA - 0.4 nozzle at 0.2mm Quality - 3 perimeters - 50% rectilinear infill, which might be overkill - Supports everywhere; I use a slightly modified version of bobstro's famous support settings (see screenshot) - See screenshot for brim settings - With supports and brim added, this model takes up nearly the entire width of a MK3 print surface so I disabled the skirt
