Velcro Mount for Ikea Skadis

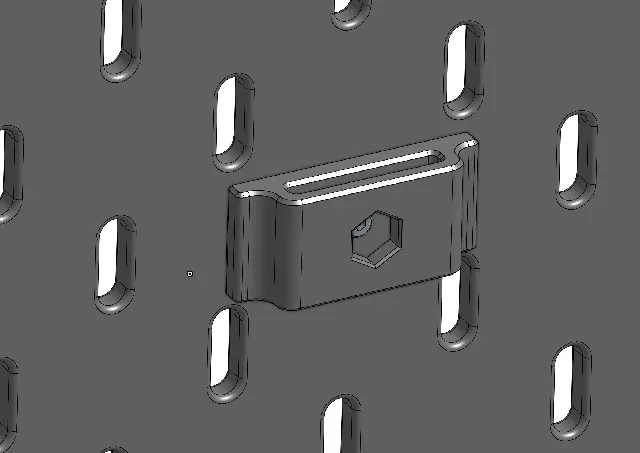

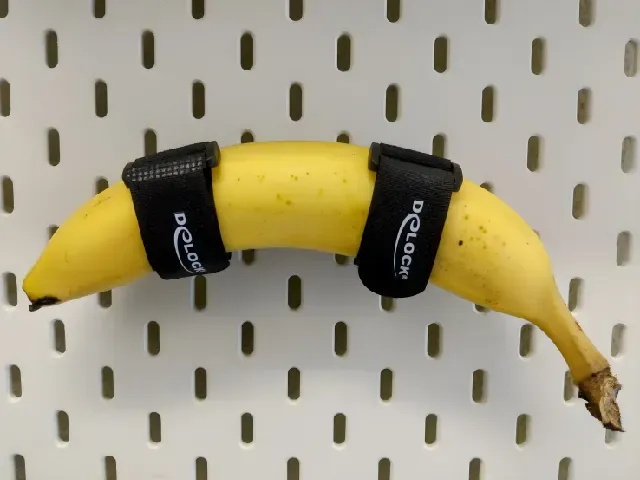

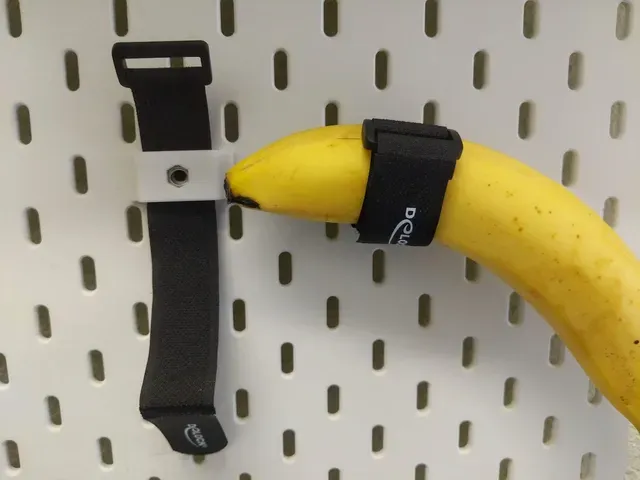

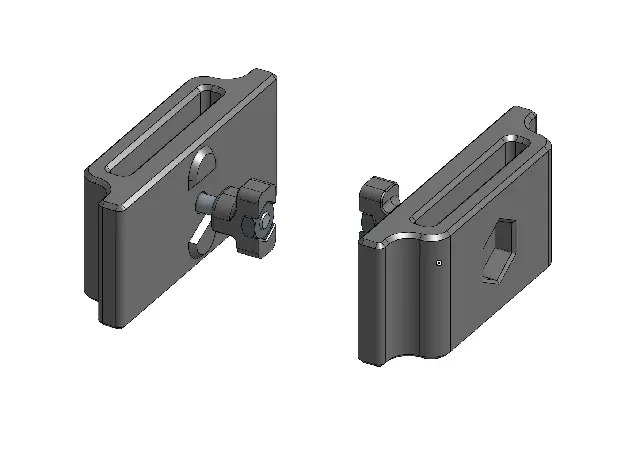

A strong mount to attach Velcro / hook and loop loops and straps to IKEA SKÅDIS pegboards. It is a remix of the Velcro Clip by Pavel Riedl that has been adapted to work with Skadis T-Nuts for easy and secure installation on Skadis pegboards. Works with cinch straps as well as velcro tape from a roll.

Read more about the Skadis T-Nuts Mounting System and check out the Skadis T-Nuts Collection for more Skadis accessories that use T-Nuts.

BOM

Qty

Description

Sourcing

1

M2.5x12mm (or longer) Socket Head Cap Screw

Aliexpress

1

M2.5 DIN934 Hex Nut

Aliexpress

Printed Parts

Qty

Part

Download

1

Velcro Mount (choose size and orientation)

this project

1

Skadis T-Nut M2.5

Download here

Sizes

Files are available in the most common metric and imperial sizes and in vertical or horizontal orientation.

Metric

File

Orientation

Velcro Width

Velcro Mount Vertical 8mm.stl

Vertical

8mm

Velcro Mount Vertical 10mm.stl

Vertical

10mm

Velcro Mount Vertical 12.5mm.stl

Vertical

12.5mm

Velcro Mount Vertical 15mm.stl

Vertical

15mm
