3D Printed CNC Machine

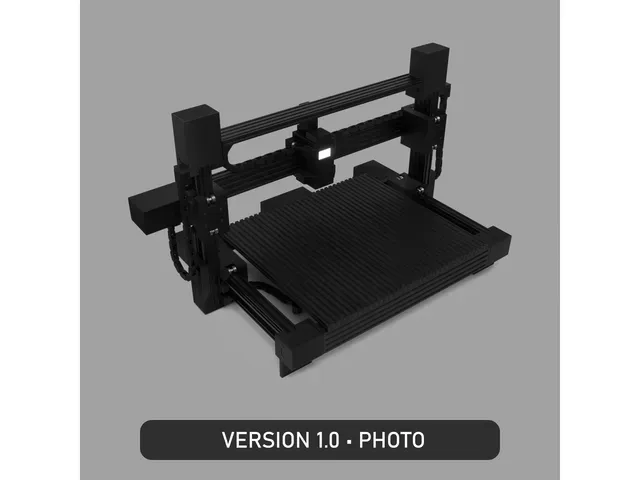

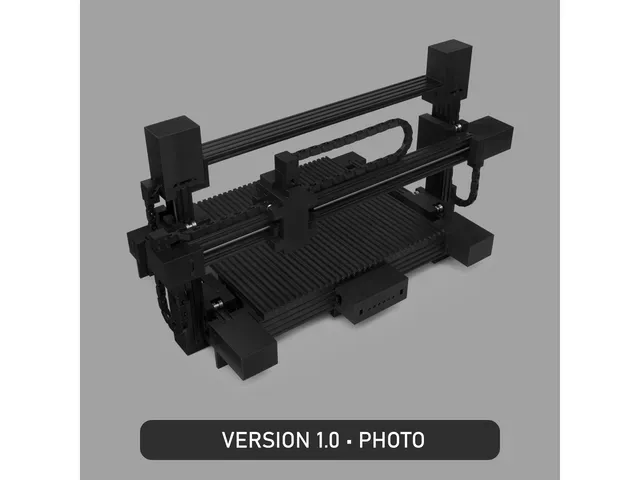

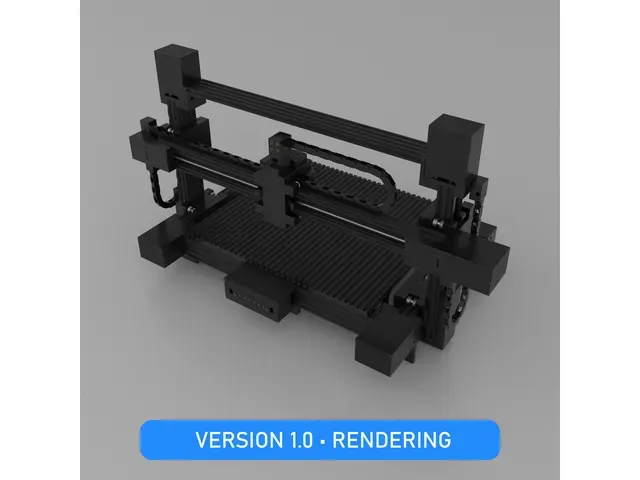

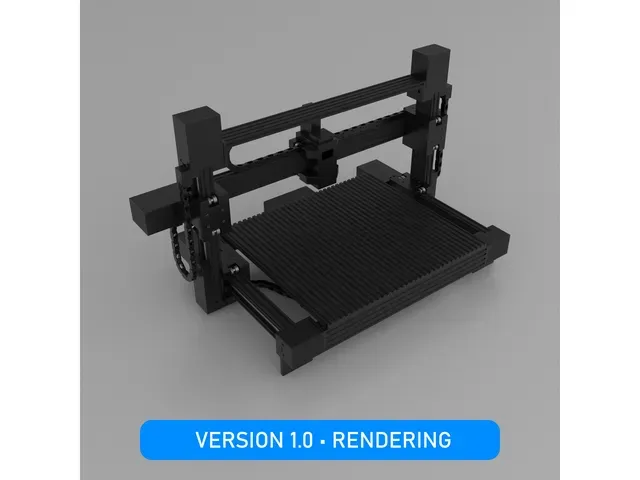

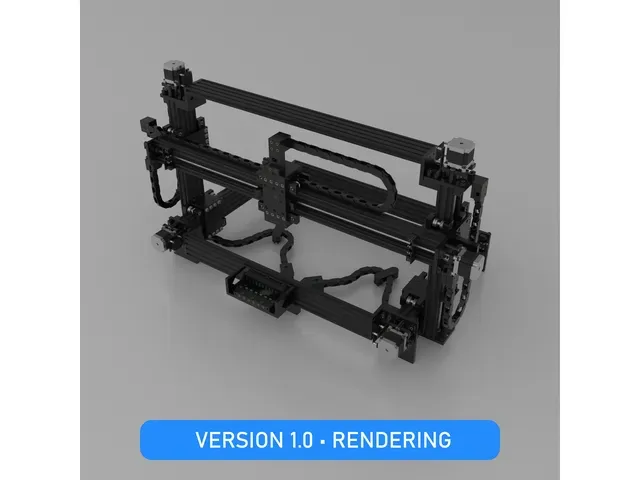

3D Printed CNC (Computer Numerical Control) Machine

DOWNLOAD Version 1.0 (2022-07-10) ZIP ~50MB

HELP with images on how to assemble CNC Machine (external link)...

INTRO

Below you will find parts and tools, which will help you to print and assemble CNC Machine. All axes are with NEMA 23 motors and ACME 8mm lead screws for better accuracy at the expense of speed (compared to belt driven axes). If you noticed mistakes, weaknesses in design, have questions or suggestions, know original part manufacturers or better alternatives (available in EU and US), please write or send link to info@jocys.com • Project page: Jocys.com/CNC

Parts were printed from PETG with Prusa3D i3 MK3 Printer . If your printer is not precise enough, printed parts may not fit into each other and may not look good. Spaces between some parts are 0.1mm only.

Electronics by TinkerForge (DE) supports various programming languages . I am using this CNC Machine with my own software for light tasks. My own software will not be available for download. Depending on what you want to do, you may need to use electronics by other manufacturer. TinkerForge allows you to write your own software, but you may need something, that exists already, and TinkerForge doesn't support that.

I hope, you will find this project or parts of it useful. If you made your own updates or changes, related to this project, please send me a link. I will add this link on this page.

CNC with covers size (cm): Z69.5 / X123.4 / Y71 Top surface plate size (cm): X68, Y62

UPDATES

1.0 (2022-07-10) • X cart cable and wheel cart covers added. 0.1 (2018-11-25) • ...

PARTS

PARTS WITHOUT TOOLS

TOTAL €2543 2022-07-10

Ooznest / OpenBuilds €1251 Main components

Tinkerforge €535 Bricks, bricklets, cables

OSMTec / StepperOnline €90 Motors, couplers

Accu €152 Bolts, nuts, washers

Anker €50 USB hub

Brennenstuhl €26 Power socket

Farnell €45 12 V Power

Ugreen €65 USB cables

Amazon / MCPP BasicFill €264 12 kg PETG 3D printer filament

Other €65 Cables, ferrules

LINEAR RAIL

Ooznest • C-Beam Linear Rail 40x80 - Cut to Size

4 x 500mm (€92). 1 x 1000mm (€44).

6063 T-5 Aluminium. Smooth anodised finish in clear or black. Black is more susceptible to scratch marks than silver. Rails are cut to stated length +/-0.2mm. Ends can be tapped for a M5 Thread at least 10mm deep.

Ooznest • V-Slot Linear Rail 20x80 - Cut to Size

2 x 694mm (€44). 1 x 796mm (€25). 7 x 600mm (€134) for top surface.

6063 T-5 Aluminium. Smooth anodised finish in clear or black. Black is more susceptible to scratch marks than silver. Rails are cut to stated length +/-0.2mm. Ends can be tapped for a M5 Thread at least 10mm deep.

Ooznest • V-Slot Linear Rail 20x60 - Cut to Size

2 x 600mm (€31) for top surface.

6063 T-5 Aluminium. Smooth anodised finish in clear or black. Black is more susceptible to scratch marks than silver. Rails are cut to stated length +/-0.2mm. Ends can be tapped for a M5 Thread at least 10mm deep.

ACME LEAD SCREW PARTS

Ooznest • ACME Anti-Backlash Nut Block

5 x ACME Anti-Backlash Nut Block (€65).

Tr8*8(p2) Anti-Backlash Nut Block for 8mm Metric Acme Lead Screw Mounting Hole Spacing: 20mm Pitch: 2mm Lead: 8mm Material: Delrin

Ooznest • ACME 8mm Lead Screw

1 x 1040mm (€41) for X axis. 4 x 540mm (€109) for Y and Z axis.
