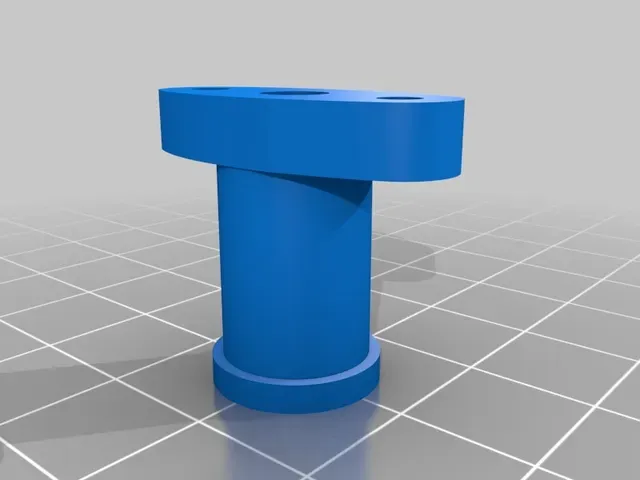

BLTouch Mount for Hypercube Evolution

Update 8/7/2019:

Modified the BLTouch Offset Mount to allow additional height adjustment.

The BLTouch Smart V2 sensor requires an adjustment of 8mm +/- .5mm height difference between the bottom of the BLTouch housing and the nozzle tip. With the original mount I could not achieve this dimension.

This is a remix of einarms 's Bltouch Mount Hypercube Evolution . The shank length is lengthened and the sensor flange thickness is reduced to allow additional adjustment ability.

A gauge to set the 8mm dimension is here

UPDATE # 10/21/18

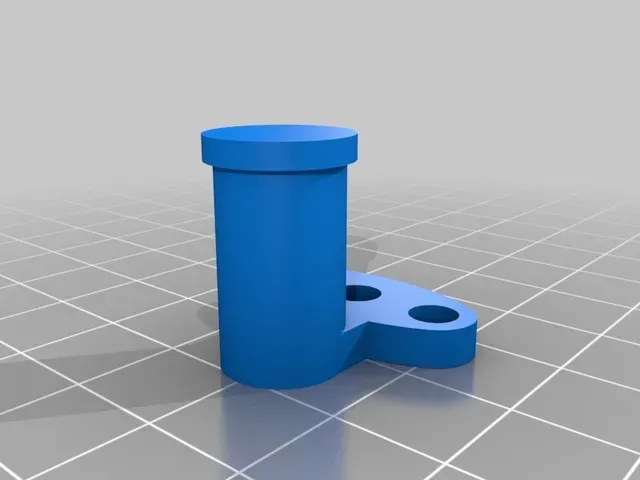

There is a "15mm or greater" distance from the heat block specification defined for the BLTouch. The original mount places the probe 5mm from the heat block. I have not found this to be an issue, but I decided to create an offset mount to try. I found that when using the offset mount the probe can hit the right hand stepper mount and with the dual "Z" axis it can hit the rail brackets. To use the mount the bed size would need to be reduced by at least 10mm on the right side. I decided to reinstall the original straight mount.

Print Settings

Printer:

Kossel Delta Plus

Rafts: No

Supports:

Yes

Resolution: .2

Infill:

100

Filament:

HICTOP ABS Black

Notes:

I printed it in the orientation of the stl file with supports.

Category: 3D Printer Parts
