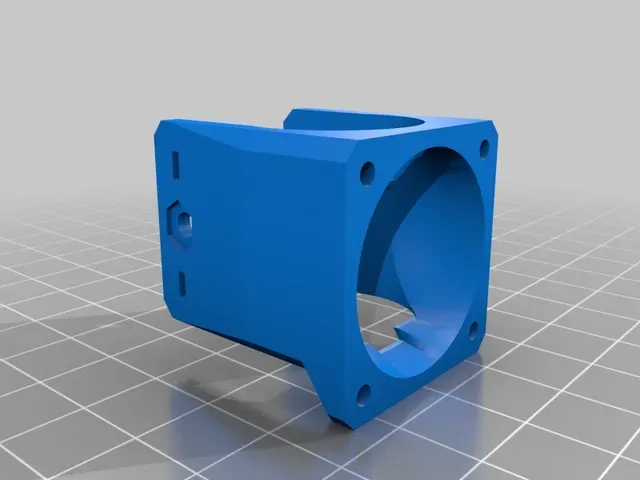

E3D v6 CFD optimized fan duct

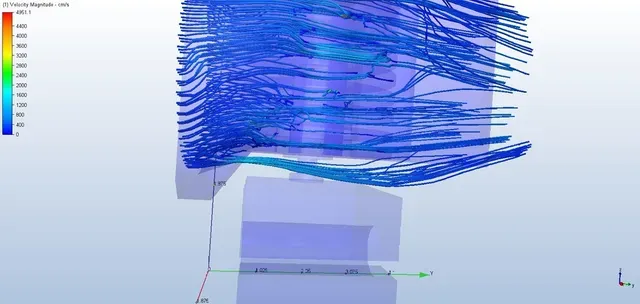

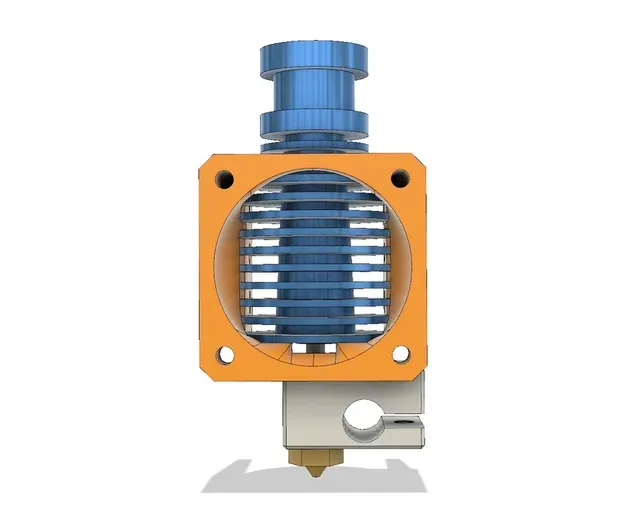

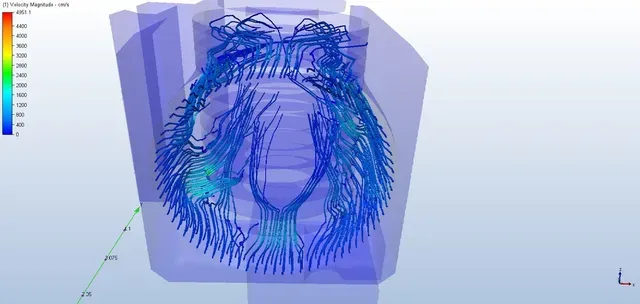

Fan duct for E3D v6 with CFD optimized air flow around heatsink and heatbreak to increase cooling surface and decrease resistance for fan.

STEP file included.

For the best strength print clip in original horizontal orientation - requires support.

Alternatively print with face (fan side) down - no supports.

Print with PET-G or ABS and 0.2 mm layer height.

Mount on heatsink and tighten with M3 30mm bolt or two zip ties.

Full cooling part set for E3D v6 is available here: https://www.thingiverse.com/thing:3590464

Check out my other designs: https://www.thingiverse.com/DaVinci2000/designs

Print Settings

Printer Brand:

TEVO

Printer: Tarantula

Rafts:

No

Supports: Yes

Resolution:

0.2

Infill: 30%

Filament: Any PET-G, ABS Any

Category: 3D Printer Parts
