Raspberry Pi Camera Mount (Anycubic i3 Mega)

Hi there,

i was looking for a nice raspberry pi camera mount that can be attached to the anycubic i3 mega. Not quite found what i was looking for so designed this piece.

The model might work for other printers aswell. mount holes working with M3 screws, distance is 16mm. You might be drilling the wholes in the frame yourself or check if position is suitable. Lift from the pole is about 70mm from screw position in the frame.

If you like the model and need slight adjusted height or camera angle, just contact me.. i can shortly change some values (just don't know them yet for other printers).

important:

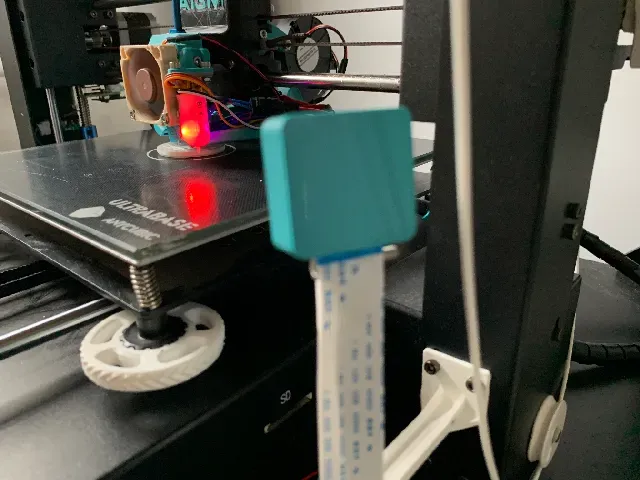

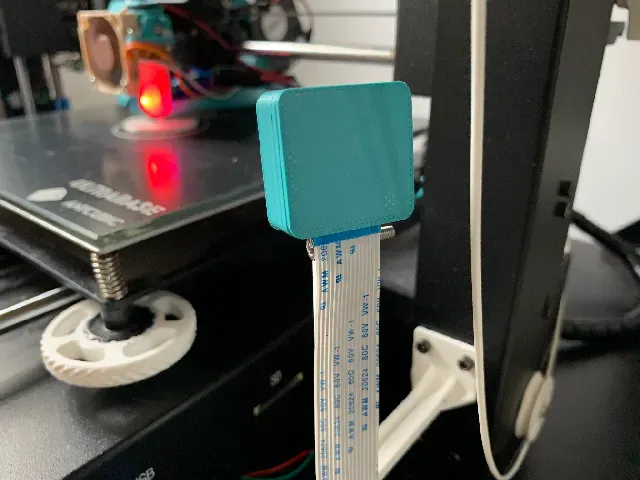

- model only includes the mount (white piece on pictures) - for the pi camera case credit to Daniel BP (https://www.printables.com/model/27844-raspberry-pi-camera-stand). Please just download the case from him. I was using the stand before, but wanted to switch to a fixed solution. The case was quite nice so i just added the fixed mount for anycubic i3 mega. printing tips:

- standard pla settings - layer height doesn't matter - no supports needed - maybe use brim to improve bed adhesion
