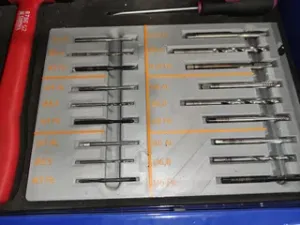

Tapping drill bits container M3-M12

Printed with 15% infill, 5 verticaal layers and 5 horizontal layers, PLA+.

For tapping drill sizes from M3 to M12

M- drill diameter (mm) - drill lenght (mm)

M3 - 2,5 - 59

M4 - 3,3 - 66

M5 - 4,2 - 75

M6 - 5 - 95

M8 - 6,8 - 110

M10 - 8,5 - 118

M12 - 10,2 - 133

At the top sides of the bottom part, there are 2,5 x 12mm holes to screw on the lid with m3 self-tapping screws.

Hanging hole is 7mm in diameter.

Enjoy!
