ADXL345 xy mount for the Ender-3 S1

This model can be attached to the Ender-3 S1 hotend and bed to mount the ADXL345 accelerometer. A single M2 screw is needed for the hotend attachment while it clips on without a screw to the metal plate under the bed. Make sure to place it on the right hand side of the bed so that the x/y axis of the accelerometer stays the same between measurements.

Printed without supports at 15% infill in PLA.

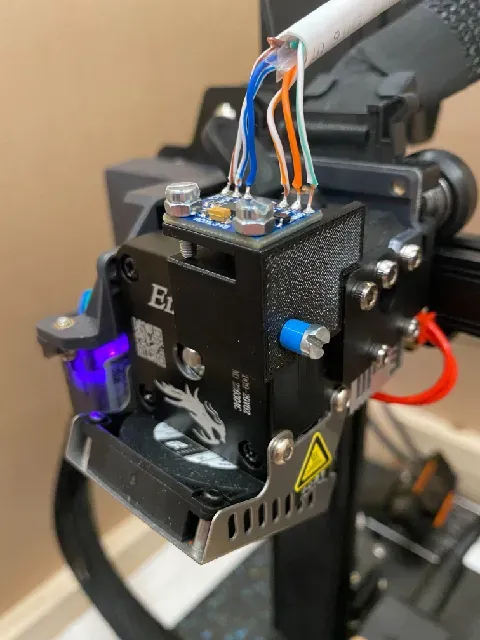

I couldn't find short enough screws so in the atteched phote I just used an offset I had and some nuts. The trick is to make sure the mount sits snuggly into the hotend mount. If it doesn't you can tweak the source code and create a new model with JSCAD: https://github.com/brujoand/XYZ-models/tree/master/ender3_xy_adxl_mount
