7 Foot Pixel Arch - Pixel

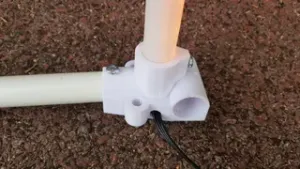

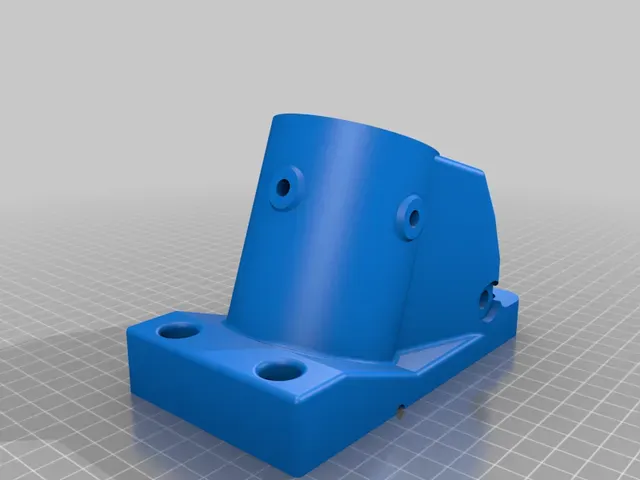

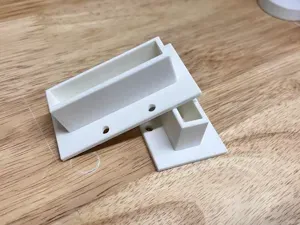

This is a Heavy Duty mounting bracket for LED Holiday Arch. The Arch is angled to support at 10 Foot 2" HDPE Tube 7 to 8 feet across. Can be used with LED Bullet Pixel or Strips.

Materials needed:

2 - 10' HDPE Tubes with 2" OD, 1.75" ID

4 - 25MM M6 Bolts

4 - M6 Nuts

1 - 7or 8' 1/2" EMT Tube

2 - M5 Nuts

2 80MM M5 Bolts

To Assemble:

- Insert 4 nuts into the internal nut holders

- Insert tube into the mounting bracket

- Use drill with 5MM bit to drill hole through tube thru the 4 holes.

- Tighten the bolts together, not one at a time (or you will risk cracking the inner part of the apparatus.

- Drill 2 holes in the EMT tube 3/4 inch from each end.

- Attach the cross support on both ends

- Repeat steps 1-4 for the bracket on the other end.

Insert the HDPE tube into 1 mount. Use a drill through the 4 mounting holes

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

No

Supports: No

Resolution:

200

Infill: 40

Filament: Any PETG Any

Notes:

This can be printed with a 0.8 Nozzle. Slized with 40% Infill & Gyroid pattern..
