AM8 Ultimate Electronics Box

This is the ultimate electronics box for AM8. Don't look no further!

This is electronics box for AM8 / BLV / other similar builds similar to AM8. Double check your printer if it has the extrusions laid out in the same way as AM8.

Pimped for:

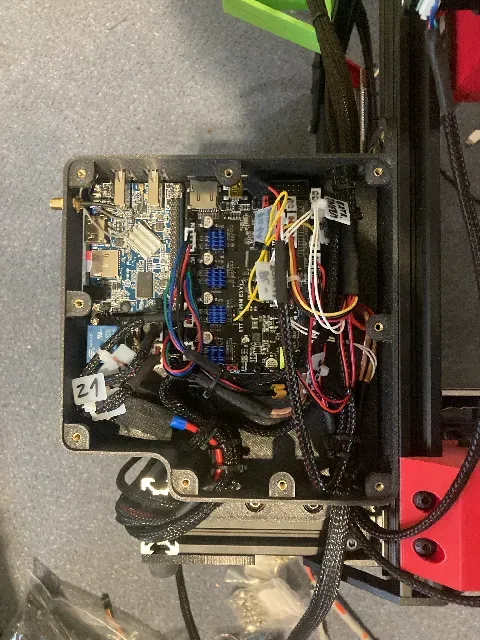

- Orange Pi Lite and for Raspberry Pi Zero 2 (Pi version is untested, please let me know how well it fits!) - SMR Mini E3 Key features:

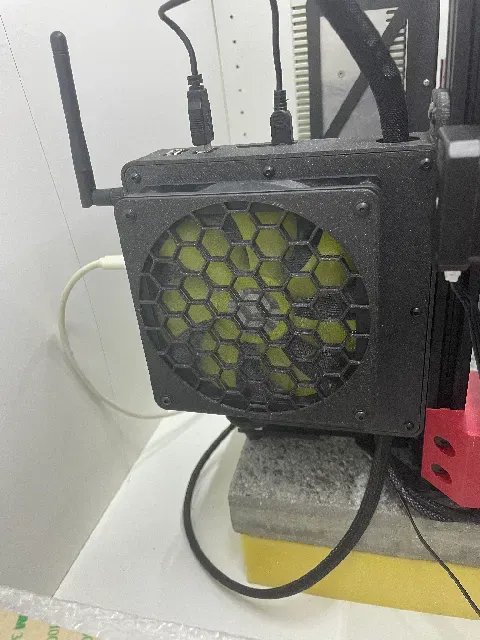

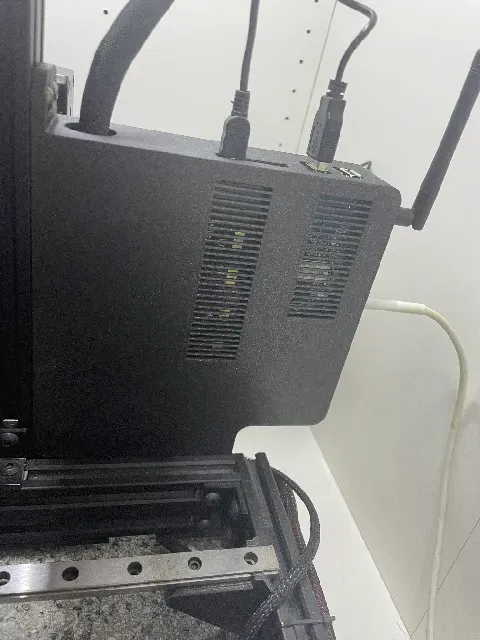

- Version for Orange Pi Lite and for Raspberry Pi Zero 2 - Footprint for small relay to switch lights or whatever - Cutouts for all important connectors and SD card - 120mm fan - Lid cutout for 120mm fan & thought out airflow make it silent and cool - Super compact, but also super rigid - Built in zip tie holders Required stuff:

- 120mm 12V fan - Fan grill is not provided, there are plenty models so it's up to you which one you like - 28x M3 brass inserts (5mm-6mm lenght) - the better ones with zig-zag pattern are recommended, but the cheap straight ones work too - 24x M3 bolt 6mm length - black hex/torx head recommended for even more badass look - 4x M3 bolt 40mm (for fan grill) - 5x M4/M5 bolts and extrusion nuts (should be included with your printer) - zip ties for cable management Printing notes:

- No supports needed to print this. One small support pre-added in the model. - 0.2mm layer height, 0.5mm line width. - I recommend to slice in latest arachne based Cura. - something like 50% cubic infill recommended for extra rigidity Other important notes:

When connecting USB from SKR mini E3 to Pi, don't forget to cut power rail of the usb cable as seen here:

https://community.octoprint.org/t/put-tape-on-the-5v-pin-why-and-how/13574
