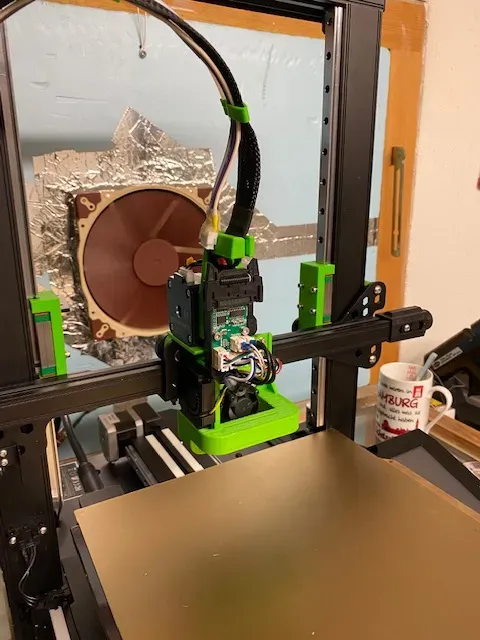

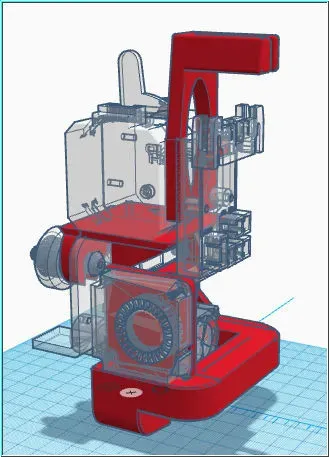

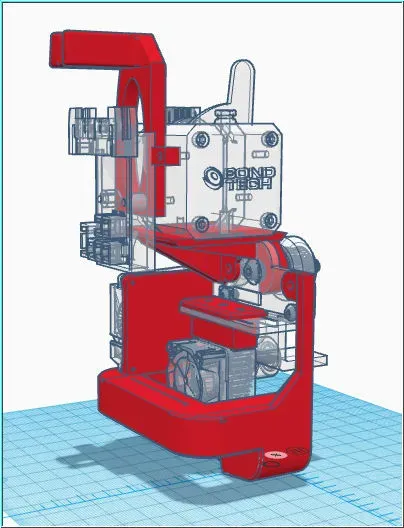

CR-6 SE Direct Drive Bondtech LGX and Slice Engineering Mosquito

Just an other inspiration of a direct drive to use with CREALITY CR-6 SE.

Many thanks to all other peoples who share there things, there is a lot inspiration for me :)

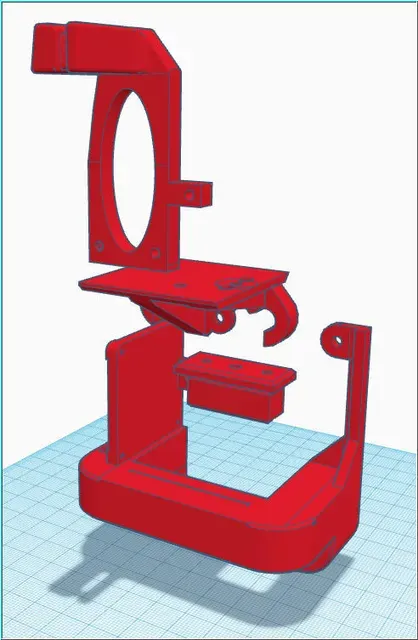

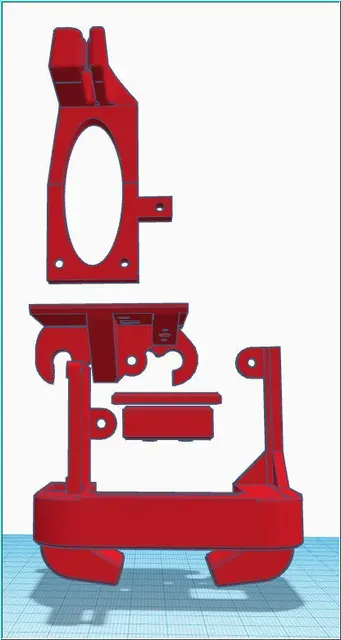

My First Thing created with TINKERCAD

December 28.2021: V0.9

- extruder-mount: cosmetic changes for new X-Axis Linear Rail mount (Work in Progress since Deceber 11 2021: ) October 31.2021: V0.8

- extruder-mount: design adaptation so that the extruder bracket can be attached vertically from above. this simplifies maintenance and it is necessary so that I can convert the X-axis to linear rail (coming in November 2021) June 06.2021: V0.7

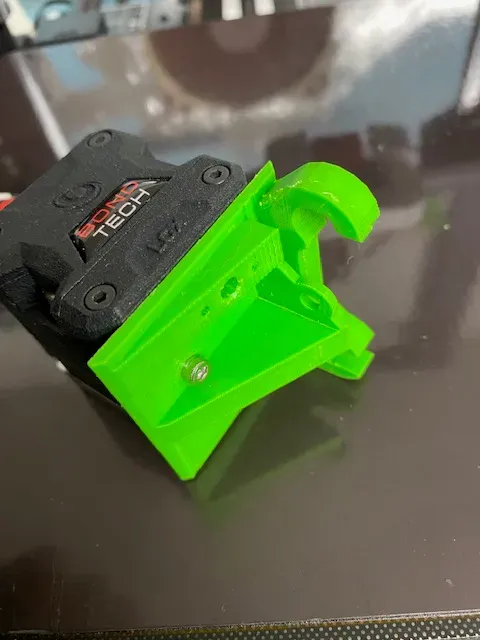

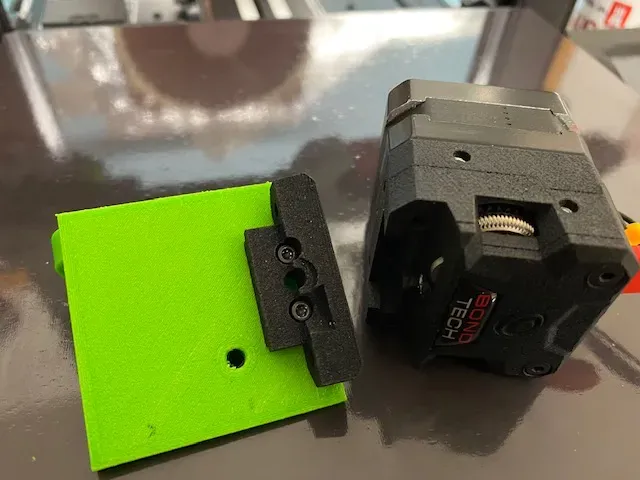

- extruder-mount: tube is about 0.85mm to much left, fixed it. removed the side panels for better printing and they are not necessary, mount the LGX with the Direct Drive Interface Plug two screws from above and one screw from below, it's a remix from https://www.thingiverse.com/thing:4851078 - part-cooler: fit now with the 25x25x10mm hotend fan from Slice Engineering, it's a remix from https://www.thingiverse.com/thing:4369859 - cable guide: it's a remix from https://www.thingiverse.com/thing:4654645 May 22.2021: V0.6

- hotend mount: change the bowden hole from 4.0 to 4.2mm and make the nut hole a little bit deeper and bigger May 17.2021: V0.5

- extruder-mount: tube is 2mm to much right, fixed it. - tested part cooler but dosn't fit with original hotend an fan. May 17.2021:

- Bondtech have published thers own solution, great :-) - i will set the priority of this project to low ;) - https://www.bondtech.se/2021/05/17/how-to-install-a-lgx-on-the-cr-6-se/ May 16.2021: V0.4

- extruder-mount: change the bowden hole from 4.0 to 4.1mm and have made the curve flat for better printing. I recommend upsidedown printing with support May 16.2021: V0.3

- Add a Part cooler, its a Remix from this: https://www.thingiverse.com/thing:4369859 May 15.2021: V0.3

- Initial published, thank you for feedback Special Thanks to:

- https://www.thingiverse.com/eric-anastas/designs - https://www.thingiverse.com/sidewayz_control/designs - https://www.thingiverse.com/sebazzz/designs Print Settings

Printer Brand: Creality

Printer: CR-6 SE

Rafts: No

Supports: Yes

Resolution: 0.20mm

Infill: 30% gyroid

Filament: purefill PETG bright green

Notes:

you can also use PLA, the mechanical stress is not very high.

Slicer was Cura 4.9.1 with a modified Profil for more Speed.

Print-Time for all Things was about 7h

Post-Printing

printed upside down with support, mount the direct drive from LGX with the two screws

M3x14mm screw

Tube lenght: max. 53mm

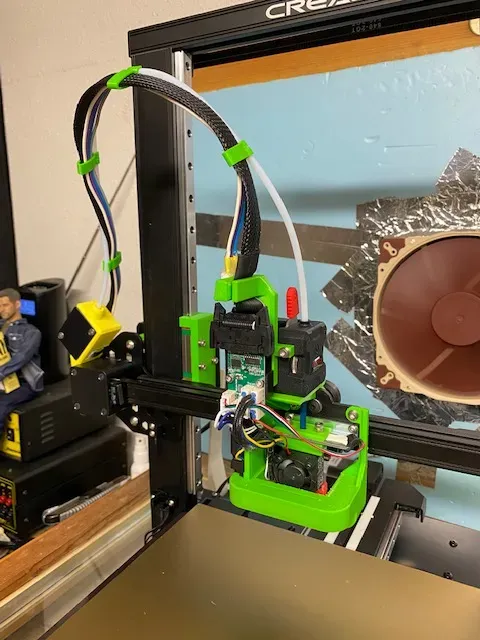

you can mount the little electronic-board direct oder with the frame to the Cable-Guide.

now i search a good Place for the light...
