Dirt Devil Quick Lite Plus Canister Latch

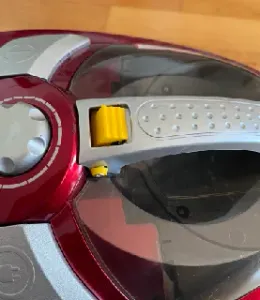

This is a replacement canister latch for a Dirt Devil Quick Lite Plus UD20015 vacuum cleaner. The original part is made of thin ABS and breaks quite easily, rendering the entire vacuum useless. This is my attempt at recreating it, i have yet to print it out, but I will later tonight. If anyone prints it before i get a chance to, I'd love to hear your comments about it. As this is a structural part, I'll be printing it with 100% infill at the upper temperature limit of the PLA I'll be using to make it, for better layer adhesion. I redesigned the clip to take up the entire width of the slot so it holds together better long term.

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

Doesn't Matter

Supports: Yes

Resolution:

.20

Infill: 100%

Filament: Inland PLA + Black

Category: Replacement Parts
