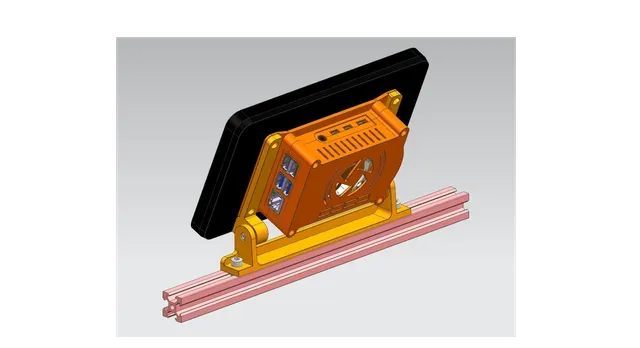

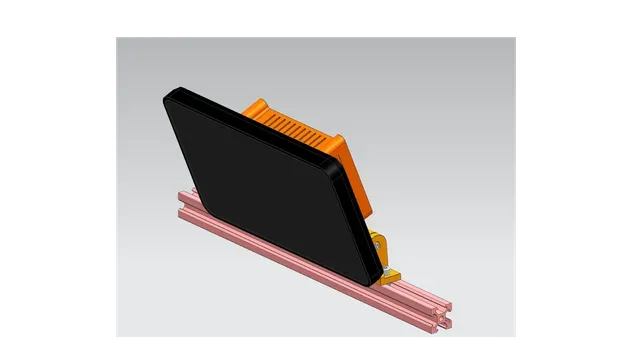

V-Slot profile 2020 mounting bracket for 7" touchscreen case

V-Slot profile 2020 mounting bracket for 7" Touchscreen case for Raspberry Pi 5 + slim version , 7" Touchscreen case for Raspberry Pi 4 + internal fan or 7" Touchscreen case for Raspberry Pi 3 (B/B+) + internal fan .

STL-Files for locking-washer, bracket-01 and bracket-02 see Plate mounting bracket for 7" touchscreen case .

Features

- Thread inserts - Display angle adjustable - Case can be rotated 180° to adjust the position of the USB ports (left or right) Required parts

- 2x M3 Thread insert → Ruthex RX-M3x5.7 - 2x Cylindrical head screw M3 x 10 or 12mm - 2x slot nut M5 + 2x cylindrical head screw M5 x 10mm or 2x slot nut M4 + 2x cylindrical head screw M4 x 10mm (Fastening v-slot profile) Assembly

Print instructions

Supports: No

Pi image configuration

Position USB Ports Left side Right side

Set in config.txt lcd_rotate=0 lcd_rotate=2
